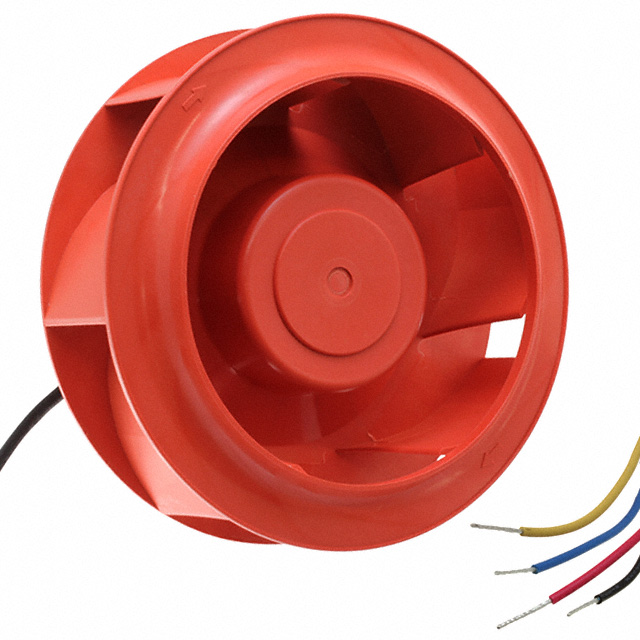

KFB1748VHT-CN

Obsolete

Delta Electronics

FAN IMP MTRZD 175X69MM 48VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN IMP MTRZD 175X69MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	KFB1748VHT-CN

Air Flow	316.9 CFM
Air Flow	8.87 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.72 A
Fan Type	Motorized Impellers
Features	PWM Control, GR-487 (Salt Fog Protection), Locked Rotor Protection, Speed Sensor (Tach)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Aluminum
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	34.56 W
RPM	3100 RPM
Size / Dimension [diameter]	175 mm Dia
Static Pressure	1.422 in H2O
Static Pressure	354.2 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	57 VDC
Voltage Range [Min]	36 VDC
Weight	670 g
Weight	1.5 lb
Width [x]	69 mm

Part	RPM	Voltage - Rated [custom]	Termination	Width [x]	Ingress Protection	Material - Blade	Features	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Approval Agency	Material - Frame	Static Pressure	Static Pressure	Lifetime @ Temp.	Air Flow	Air Flow	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Power (Watts)	Fan Type	Size / Dimension [diameter]	Width [y]	Weight [custom]	Noise
Delta Electronics KFB1748VHT-CN	3100 RPM	48 VDC	4 Wire Leads	69 mm	IP54 - Dust Protected Water Resistant	Plastic	GR-487 (Salt Fog Protection) Locked Rotor Protection PWM Control Speed Sensor (Tach)	670 g	1.5 lb	70 °C	70 °C	-10 °C	-10 °C	CE CSA UL VDE	Aluminum	1.422 in H2O	354.2 Pa	70000 Hrs	316.9 CFM	8.87 m³/min	0.72 A	36 VDC	57 VDC	Ball	34.56 W	Motorized Impellers	175 mm Dia
Delta Electronics KFB1748EHS	4200 RPM	48 VDC	2 Wire Leads			Plastic		635 g						CE CSA UL VDE	Aluminum	2.361 in H2O	588.1 Pa		297.4 CFM	8.33 m³/min		28 V	60 V	Ball	55.2 W	Motorized Impellers	175 mm Dia	54 mm	1.4 lbs	73.5 dB(A)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 316.9 CFM (8.87m³/min) 4 Wire Leads
