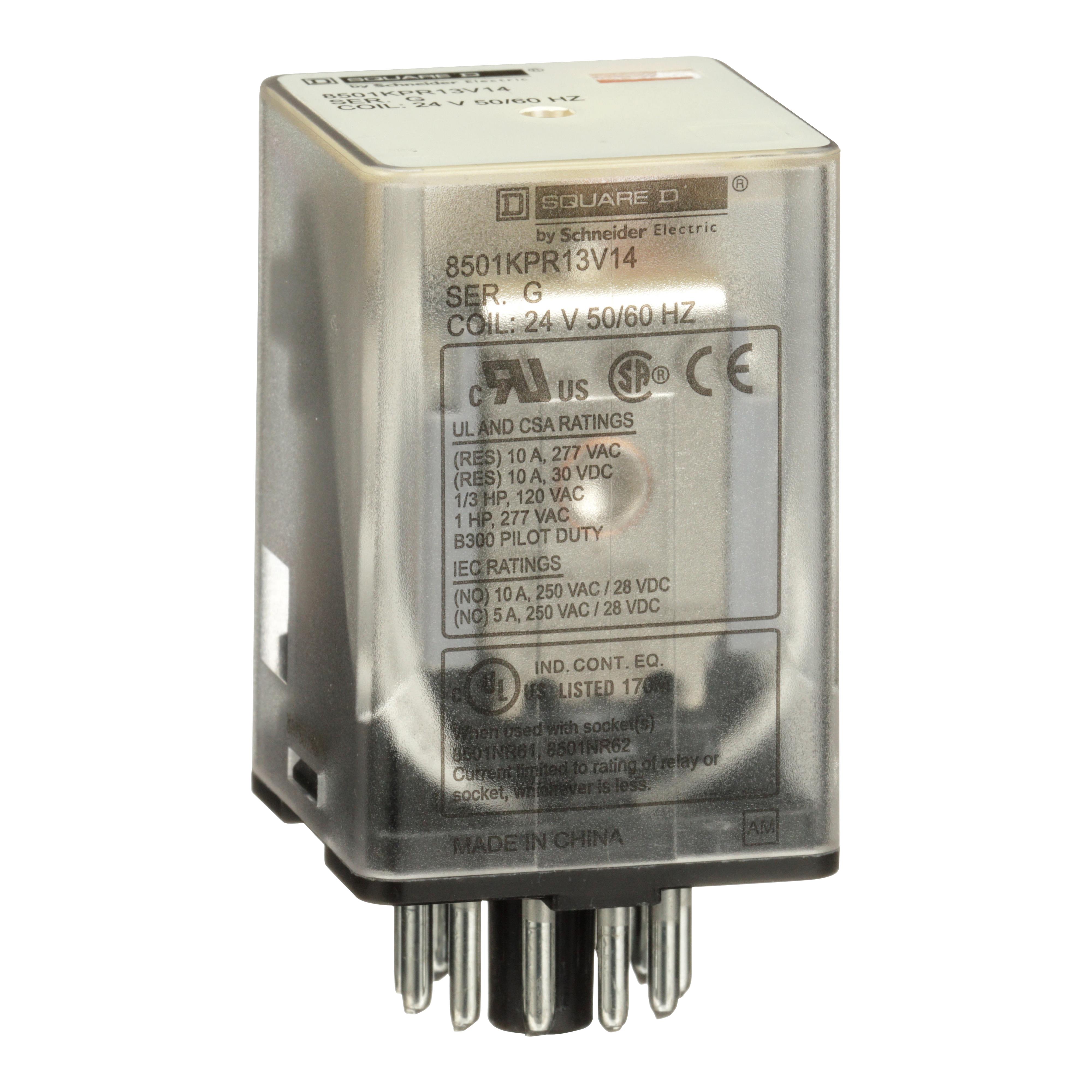

8501KPR13V14

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 3CO CYL PIN 6.6A@240V 24VA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRelays and Timers Datasheet

8501KPR13V14

Active

SQUARE D BY SCHNEIDER ELECTRIC

RELAY 3CO CYL PIN 6.6A@240V 24VA

Deep-Dive with AI

DocumentsRelays and Timers Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8501KPR13V14

Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	3PDT (3 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	3000 VA, 300 W
Mounting Type	Chassis Mount
Operate Time	20 ms
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	300 VAC, 30 VDC
Termination Style	Plug In, 11 Pin (Octal)

8501KP Series

Part	Contact Rating (Current)	Relay Type	Contact Material	Operate Time	Coil Type	Termination Style	Mounting Type	Coil Voltage	Load - Max Switching	Release Time	Contact Form	Switching Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR13V14	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 11 Pin (Octal)	Chassis Mount	24 VAC	300 W 3000 VA	20 ms	3PDT (3 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12V36	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Chassis Mount	12 VAC/DC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPDR12V56	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Chassis Mount	48 VDC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12V14	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Socketable	24 VAC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPDR12P14V53	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 8 Pin (Octal)	Socketable	24 VDC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12P14V24	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 11 Pin (Octal)	Socketable	240 VAC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C	Lighted Indicator
SQUARE D BY SCHNEIDER ELECTRIC 8501KPR12P14V14	10 A	General Purpose	Silver Nickel (AgNi)	20 ms	Non Latching	Plug In 11 Pin (Octal)	Chassis Mount	24 VAC	300 W 3000 VA	20 ms	DPDT (2 Form C)	30 VDC 300 VAC	-40 °C	55 °C	Lighted Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 81.50
		10	$ 77.21
