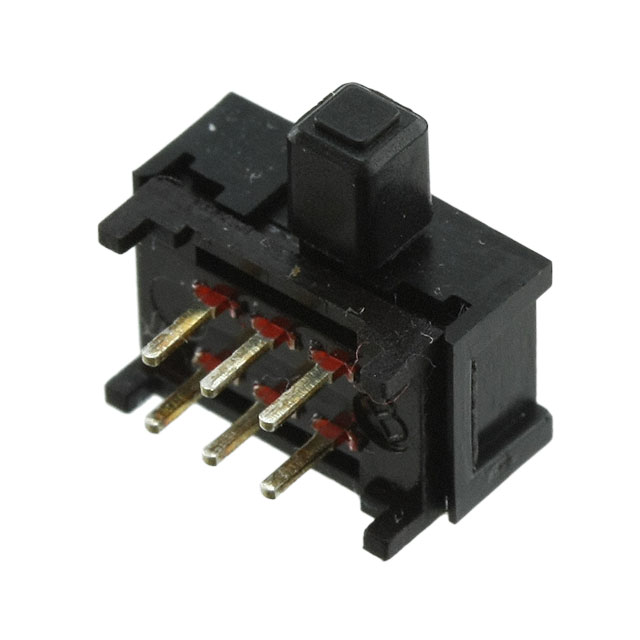

MMS22R

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 100MA 30V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DPDT 100MA 30V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Material	Switch Travel	Actuator Length [x]	Actuator Type	Operating Force	Mechanical Life	Termination Style	Circuit	Mounting Type	Voltage Rating - DC	Contact Timing	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Electrical Life	Contact Finish	Features
TE Connectivity Raychem Cable Protection MMS22R	Polyester	2 mm	4.29 mm	Standard	200 gf	10000 Steps	PC Pin	DPDT	Through Hole Right Angle	30 V	Shorting	Copper Alloy	100 mA	-20 C	60 °C	On-On	10000 Cycles	Silver	Epoxy Sealed Terminals
TE Connectivity Raychem Cable Protection MMS22	Polyester	2 mm	2 mm	Standard	200 gf	10000 Steps	PC Pin	DPDT	Through Hole	30 V	Shorting	Copper Alloy	100 mA	-20 C	60 °C	On-On	10000 Cycles	Silver	Epoxy Sealed Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch DPDT Through Hole, Right Angle
