PHBC20-1R7A0152V

Active

KEMET

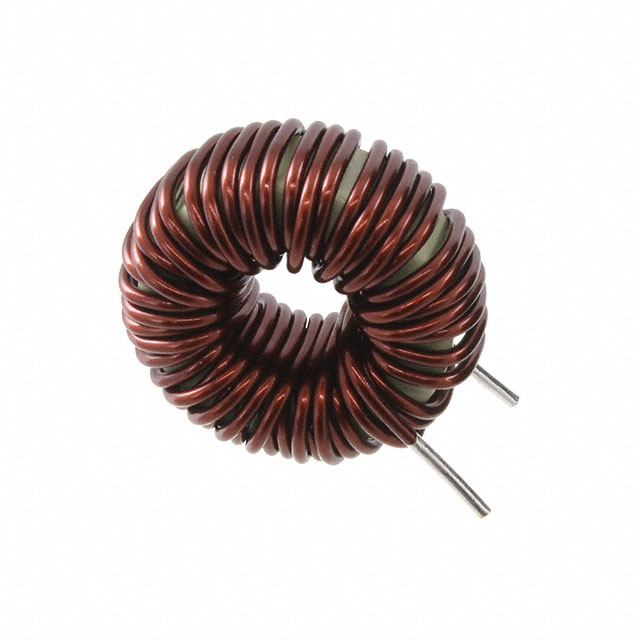

TOROIDAL INDUCTOR, PHBC SERIES, 152 µH, 12 A, 0.0204 OHM, ± 20%

Search across all available documentation for this part.

Active

KEMET

TOROIDAL INDUCTOR, PHBC SERIES, 152 µH, 12 A, 0.0204 OHM, ± 20%

Technical Specifications

Parameters and characteristics for this part

Part	Number of Lines	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Package / Case	Current Rating (Max) [Max]	Mounting Type	DC Resistance (DCR) (Max)
KEMET PHBC20-1R7A0054V	2	125 °C	-40 °C	11.5 mOhm	54 µH	1.622 in	41.2 mm	No Base Vertical	2 Lead	12 A	Through Hole
KEMET PHBC20-1R7A0152V	2	125 °C	-40 °C		152 µH	1.622 in	41.2 mm	No Base Vertical	2 Lead	12 A	Through Hole	20.4 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.95
Newark	Each	1	$ 16.59

General part information

152 µH @ 100 kHz 2 Line Common Mode Choke Through Hole 12A DCR 20.4mOhm
