Specification	MB7CKN0900-S2-KIT

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating Options	10A, 30A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	Power, PE
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 V
Voltage Rating (Type)	DC

MB7CKN0900 Series

Part	Fastening Type	Shielding	Contact Shape	Shell Size - Insert	Insert Material	Type	Shell Material	Material Flammability Rating	Shell Finish	Contact Size	Features	Housing Color	Contact Type	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Note	Position Types	Number of Positions	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Orientation	Current Rating Options	Primary Material	Color	Voltage Rating	Voltage Rating (Type)	Contact Finish - Mating	Termination
McGill Microwave Systems MB7CKN0900-S1	Threaded	Shielded	Circular	M23-9	Nylon 6/6 PA66 Polyamide	For Female Sockets	Zinc Die Cast	UL94 V-0	Nickel	1 mm 2 mm	Backshell Coupling Nut	Silver	Crimp	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Contacts Not Included	PE Power	9	Plug Housing	-20 °C	130 °C	Keyed

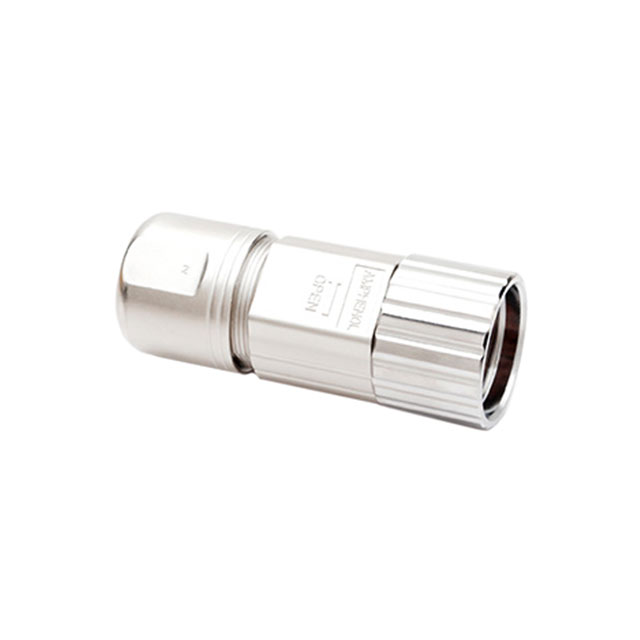

McGill Microwave Systems MB7CKN0900-S3	Threaded	Shielded	Circular	M23-9	Nylon 6/6 PA66 Polyamide	For Female Sockets	Zinc Die Cast	UL94 V-0	Nickel	1 mm 2 mm	Backshell Coupling Nut	Silver	Crimp	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Contacts Not Included	PE Power	9	Plug Housing	-20 °C	130 °C	Keyed
McGill Microwave Systems MB7CKN0900-S2-KIT	Threaded	Shielded		M23-9			Zinc Die Cast		Nickel		Backshell Coupling Nut			Free Hanging (In-Line)	Dust Tight Waterproof	IP67		PE Power	9	Female Sockets Plug	-20 °C	130 °C	Keyed	10A 30A	Metal	Silver	250 V	DC	Gold	Crimp
McGill Microwave Systems MB7CKN0900-S2	Threaded	Shielded	Circular	M23-9	Nylon 6/6 PA66 Polyamide	For Female Sockets	Zinc Die Cast	UL94 V-0	Nickel	1 mm 2 mm	Backshell Coupling Nut	Silver	Crimp	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Contacts Not Included	PE Power	9	Plug Housing	-20 °C	130 °C	Keyed
McGill Microwave Systems MB7CKN0900-S1-KIT	Threaded	Shielded		M23-9			Zinc Die Cast		Nickel		Backshell Coupling Nut			Free Hanging (In-Line)	Dust Tight Waterproof	IP67		PE Power	9	Female Sockets Plug	-20 °C	130 °C	Keyed	10A 30A	Metal	Silver	250 V	DC	Gold	Crimp
