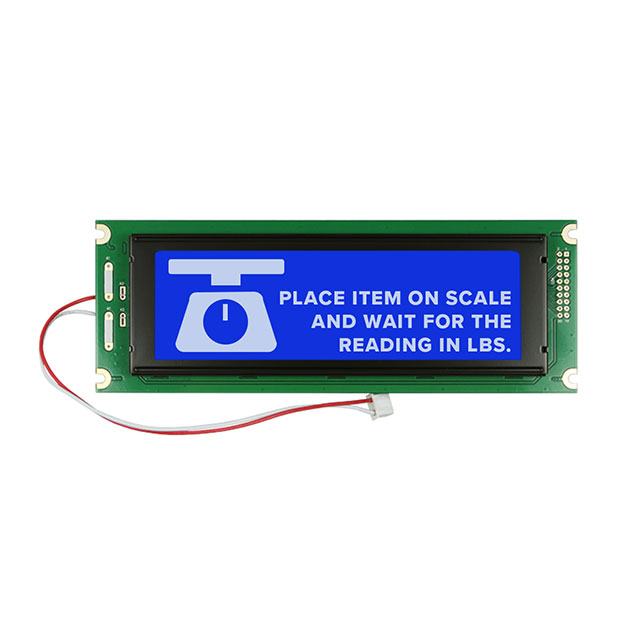

NHD-24064WG-ATMI-VZ#
ActiveNewhaven Display Intl
LCD GRAPH 240X64 WT TRANSM
Deep-Dive with AI
Search across all available documentation for this part.
NHD-24064WG-ATMI-VZ#
ActiveNewhaven Display Intl
LCD GRAPH 240X64 WT TRANSM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-24064WG-ATMI-VZ# |
|---|---|
| Background Color | Blue |
| Background Color | White |
| Backlight | LED - White |
| Controller Type | T6963C |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.53 mm |
| Dot Pitch [y] | 0.53 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 64 |
| Dot Size [custom] | 0.49 mm |
| Dot Size [custom] | 0.49 mm |
| Graphics Color | White, Blue |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 133 mm |
| Viewing Area [y] | 39 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 66.90 | |
| 5 | $ 62.89 | |||
| 10 | $ 58.87 | |||
| 50 | $ 55.53 | |||
| 100 | $ 52.85 | |||
Description
General part information
NHD-24064 Series
Graphic LCD Display Module Transmissive White (Blue - Inverted) STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 64
