42142-1

42142-1

Active
TE Connectivity AMP Connectors

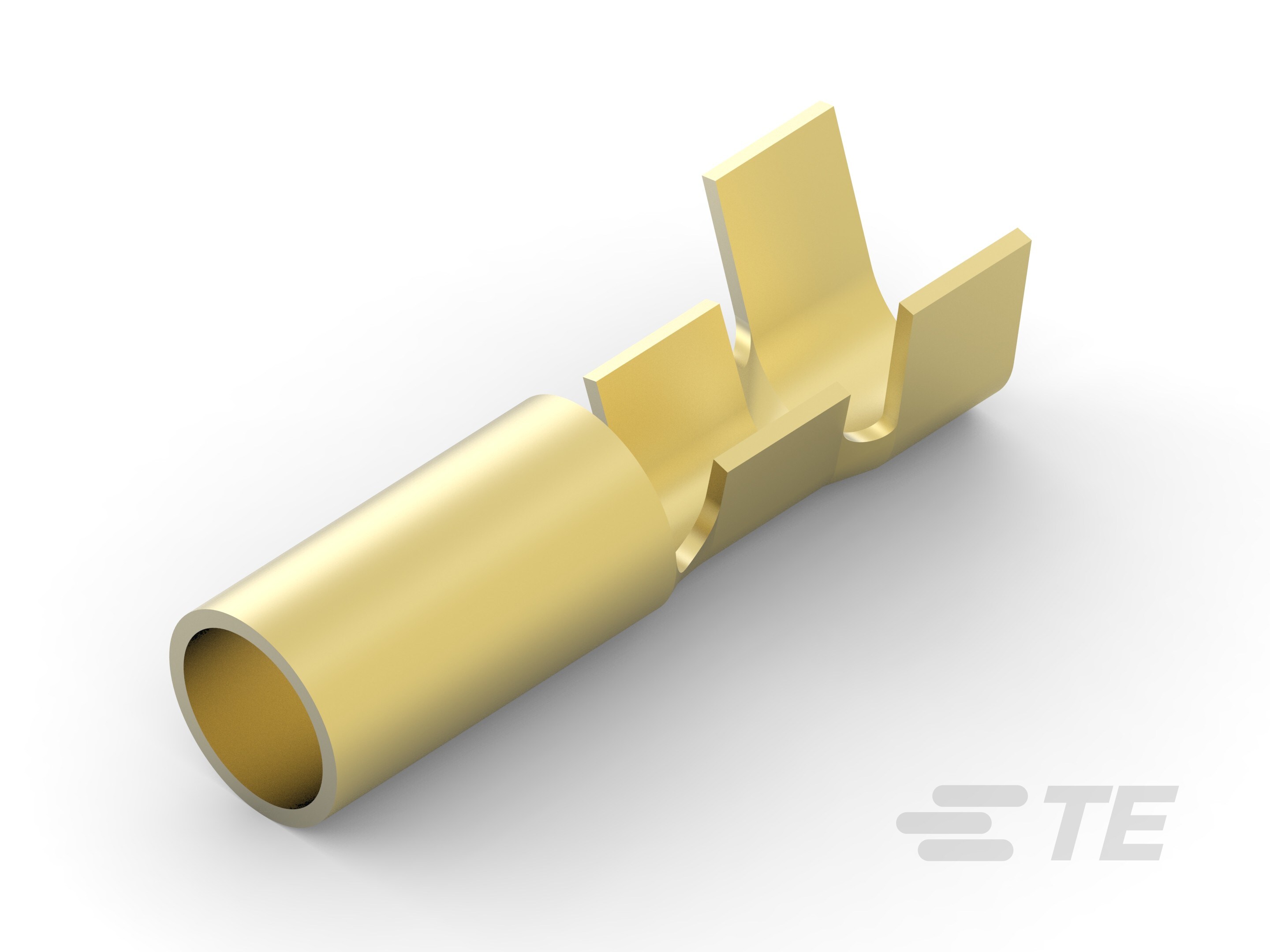

SHUR-PLUG 14-18AWG BRASS F 17.65MM TIN T/R

Find alt
42142-1

42142-1

Active
TE Connectivity AMP Connectors

SHUR-PLUG 14-18AWG BRASS F 17.65MM TIN T/R

Find alt

Description

General part information

42142 Series

Shur-Plug, 3.96 mm [.156 in] Pin Diameter, 18 – 14 AWG, .8 – 2 mm² Wire, 1624 – 4106 CMA, Open Barrel, Tin Plating, SHUR-PLUG 156

Technical Specifications

Parameters and characteristics for this part

Specification42142-1
Contact FinishTin
Contact MaterialBrass
Diameter - Barrel0.156 in
InsulationNon-Insulated
Insulation Diameter (Max)0.175 in
Insulation Diameter (Min)0.13 in
Length - Barrel0.344 in
Length - Overall0.695 in
Terminal TypeReceptacle (Socket), Female
TerminationCrimp
Wire Gauge (AWG) (Max)18 AWG
Wire Gauge (AWG) (Min)14 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
