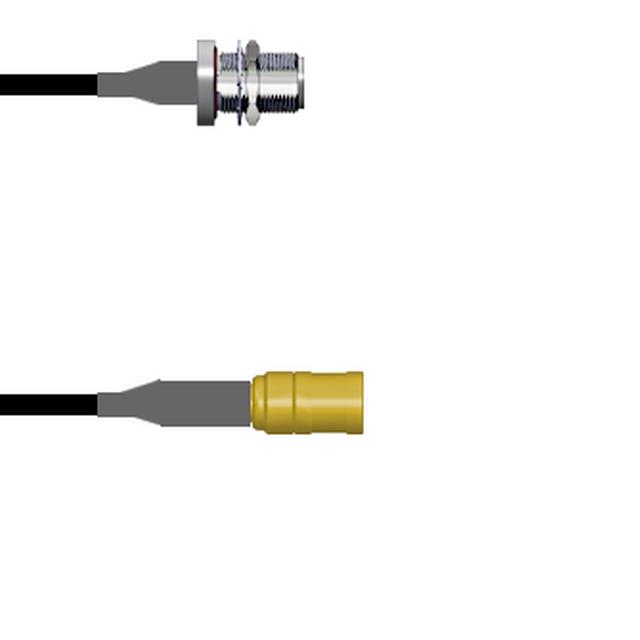

CBL ASSY SMB-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T03W0003108i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T03W0003108i

1st Connector	SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1T03W0 Series

Part	2nd Contact Gender	Overall Impedance	2nd Connector	Features	1st Contact Gender	Cable Type	1st Connector Mounting Type	1st Connector	Length	Length	Length	Color	2nd Connector Mounting Feature	Frequency - Max [Max]	2nd Connector Mounting Type	Style
Amphenol Custom Cable Q-1T03W0005002M	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug	6.6 ft	78.7 in	2 m	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W00052.5M	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug	8.2 '	98.4 in	2.5 m	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W0005006i	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug		6 in	152.4 mm	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W0003108i	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-174	Free Hanging (In-Line)	SMB Plug	9 ft	108 in	2.7 m	Black	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W0005072i	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug	6 ft	72 in	1.8 m	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W0005108i	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug	9 ft	108 in	2.7 m	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W0005009i	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug		9 "	228.6 mm	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W00051.5M	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug	4.9 ft	59.1 in	1.5 m	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W0003060i	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-174	Free Hanging (In-Line)	SMB Plug	5 ft	5 '	1.5 m	Black	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type
Amphenol Custom Cable Q-1T03W00050.5M	Female	50 Ohms	N-Type Jack	Shielded	Female	RG-316	Free Hanging (In-Line)	SMB Plug		19.69 "	50 cm	Copper	Bulkhead - Front Side Nut	4 GHz	Panel Mount	SMB to N-Type

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 83.12
		25	$ 81.51
		50	$ 79.89
		100	$ 78.28
		250	$ 76.67

Description

General part information

Q-1T03W0 Series

Cable Assembly Coaxial SMB to N-Type RG-174 108.0" (2.7m) 9.0'
