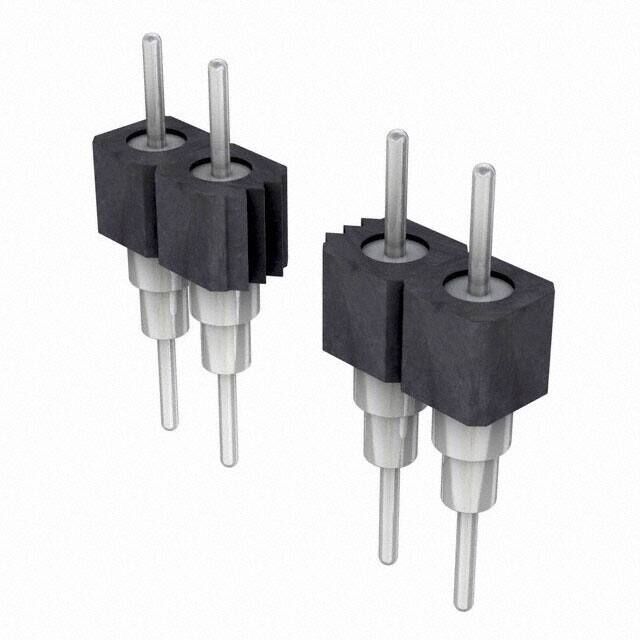

BBS-123-T-A

Unknown

Samtec Inc.

CONN HEADER VERT 23POS 2.54MM

Search across all available documentation for this part.

Unknown

Samtec Inc.

CONN HEADER VERT 23POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBS-123-T-A

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	23
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Color	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Connector Type	Contact Type	Termination	Insulation Material	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Number of Positions	Number of Rows	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length
Samtec Inc. BBS-123-T-A	Nickel	5.35 mm	0.211 in	-55 °C	125 °C	Through Hole	Black	All	0.125 in	3.18 mm	Unshrouded	0.1 in	2.54 mm	Header	Male Pin	Solder	Polyester Glass Filled	Push-Pull	11.68 mm	0.46 "	3.18 mm	0.125 in	1.27 µm	50 µin	Circular	23	1
Samtec Inc. BBS-123-G-G	Nickel			-55 °C	125 °C	Through Hole	Black	All	0.125 in	3.18 mm	Unshrouded	0.1 in	2.54 mm	Header	Male Pin	Solder	Polyester Glass Filled	Push-Pull	21.21 mm	0.835 in	3.18 mm	0.125 in	1.27 µm	50 µin	Circular	23	1	Gold	0.585 in	14.86 mm	0.51 µm	20 µin
Samtec Inc. BBS-123-T-B	Nickel			-55 °C	125 °C	Through Hole	Black	All	0.125 in	3.18 mm	Unshrouded	0.1 in	2.54 mm	Header	Male Pin	Solder	Polyester Glass Filled	Push-Pull	0.585 in		3.18 mm	0.125 in	1.27 µm	50 µin	Circular	23	1		0.335 "	8.51 mm			14.86 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 23 position 0.100" (2.54mm)
