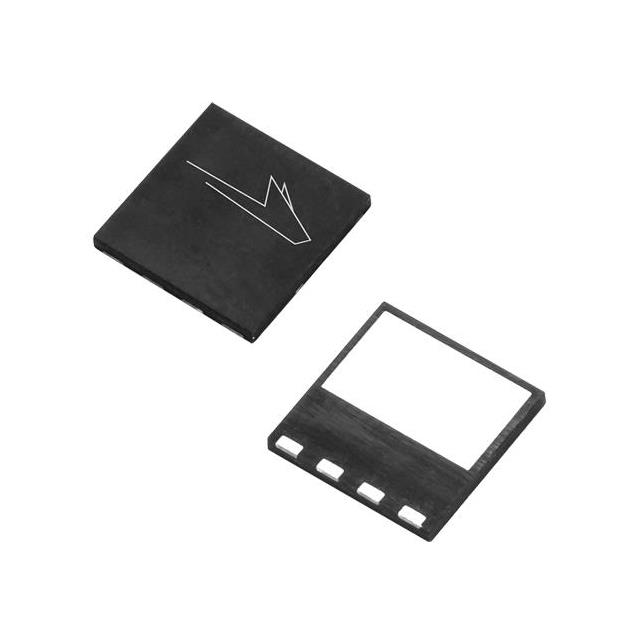

Specification	C3D1P7060Q

Capacitance	100 pF
Current - Average Rectified (Io)	9.7 A
Current - Reverse Leakage	50 µA
Mounting Type	Surface Mount
Operating Temperature - Junction (Max)	160 °C
Operating Temperature - Junction (Min)	-55 °C
Package / Case	10-PowerTQFN
Package Length	3.3 mm
Package Name	10-Power QFN
Package Width	3.3 mm
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Speed - Fast Recovery (Minimum)	500 mA
Speed - Recovery Current	500 mA, 500 mA
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max)	600 V
Voltage - Forward (Vf) (Max)	1.7 V

C3D1P7060 Series

Part	Voltage - Forward (Vf) (Max)	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Current - Average Rectified (Io)	Mounting Type	Current - Reverse Leakage	Capacitance	Package Name	Package Width	Package Length	Package / Case	Technology	Voltage - DC Reverse (Vr) (Max)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Reverse Recovery Time (trr)
Wolfspeed, Inc. C3D1P7060Q	1.7 V	500 mA	No Recovery Time	500 mA 500 mA	9.7 A	Surface Mount	50 µA	100 pF	10-Power QFN	3.3 mm	3.3 mm	10-PowerTQFN	SiC (Silicon Carbide) Schottky	600 V	160 °C	-55 °C	0 ns
