336206-14-0200
ActiveMcGill Microwave Systems
CBL ASSY U.FL-RPTNC PL-JK 7.874"
336206-14-0200
ActiveMcGill Microwave Systems
CBL ASSY U.FL-RPTNC PL-JK 7.874"
Description
General part information
336206 Series

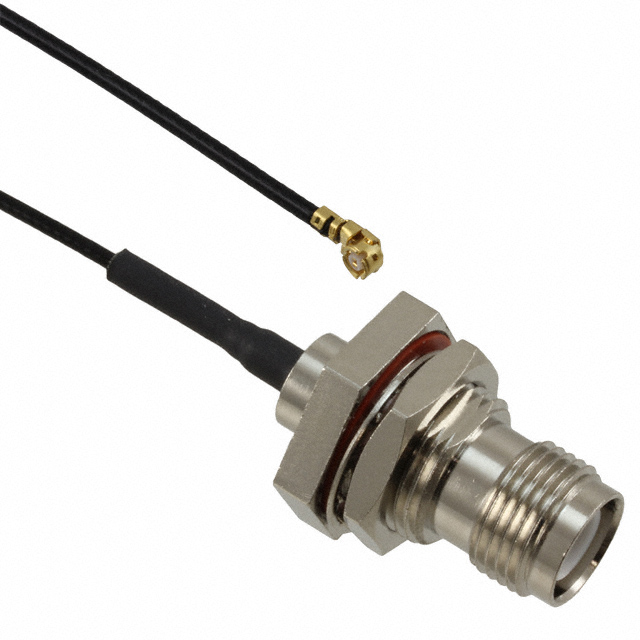

Cable Assembly Coaxial U.FL (UMCC), AMC to RP-TNC 1.37mm OD Coaxial Cable 7.874" (200.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 336206-14-0200 |
|---|---|
| 1st Connector | AMC Plug, Right Angle, U.FL (UMCC) |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | RP-TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Male |
| Cable Outer Diameter | 1.37 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 1.37 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Length | 7.874 in |
| Overall Impedance | 50 Ohms |
| Style | AMC to RP-TNC, U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
