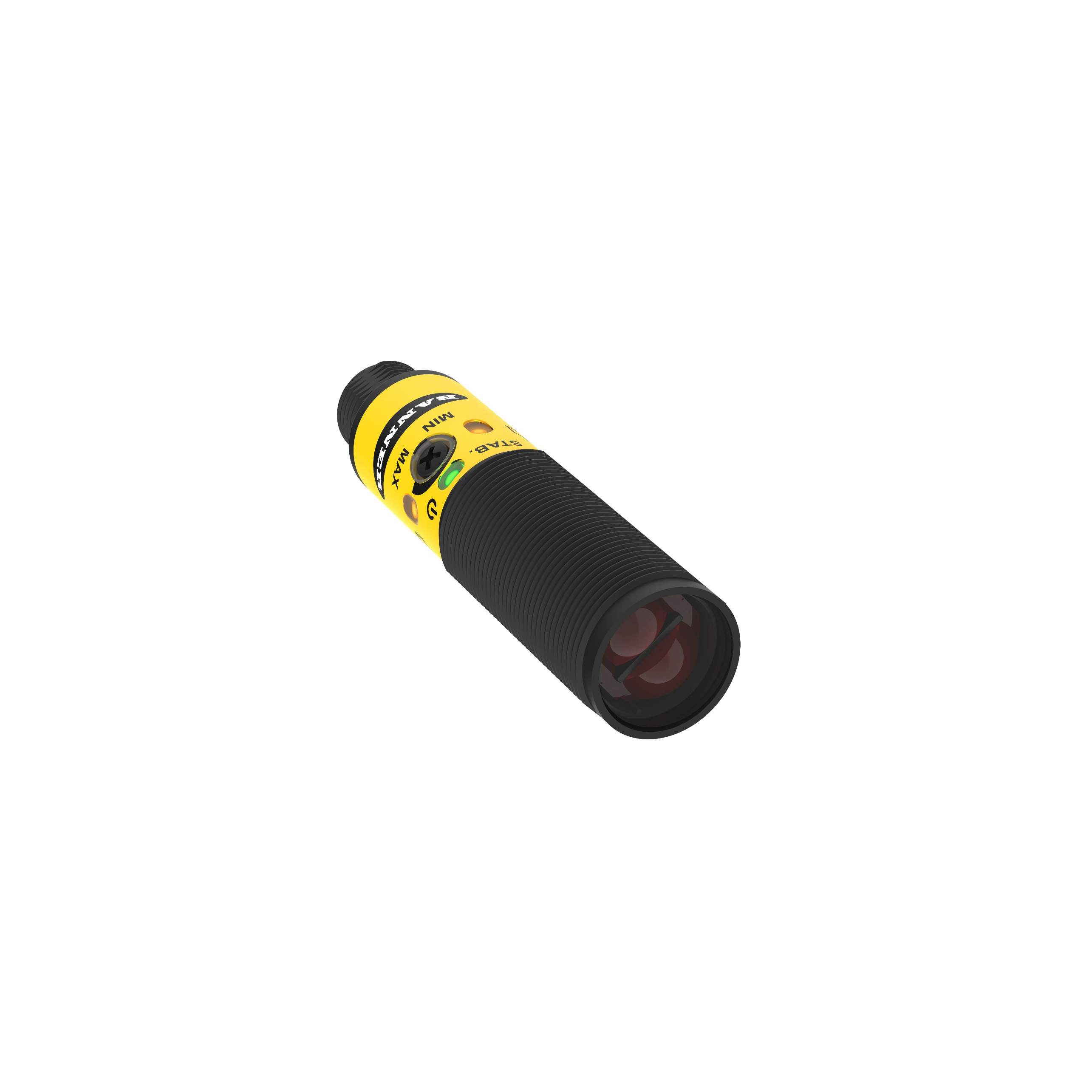

S18-2NAES-Q8
ActiveBANNER ENGINEERING
S18-2 SERIES: EMITTER WITH POT<B
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S18-2NAES-Q8
ActiveBANNER ENGINEERING
S18-2 SERIES: EMITTER WITH POT<B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S18-2NAES-Q8 |
|---|---|
| Connection Method | Connector |
| Ingress Protection | NEMA 6P, IEC IP67 |
| Light Source | Red |
| Light Source | 645 nm |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Response Time | 1.5 ms |
| Sensing Distance | 82.02 ft |
| Sensing Distance | 25 m |
| Sensing Method | Through-Beam |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
S18-2N Series
Through-Beam Optical Sensor 82.02' (25m)
Documents
Technical documentation and resources
