6543PA 0081000

Active

Belden Inc.

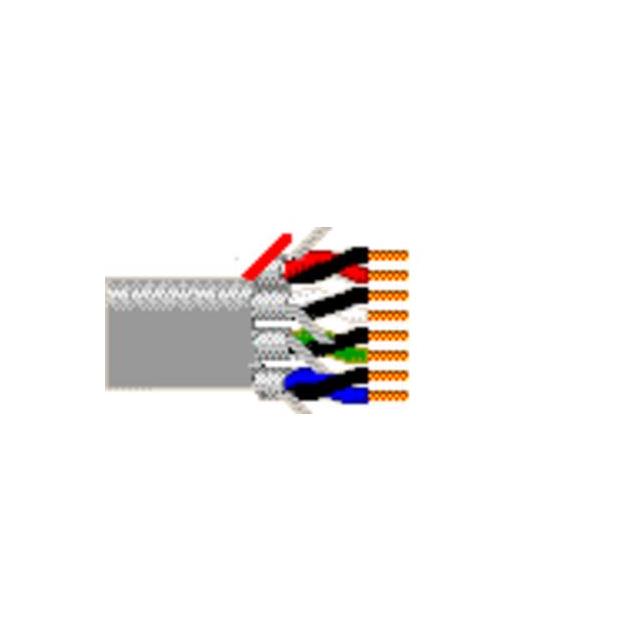

MULTI-PAIR 8CON 22AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8CON 22AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	6543PA 0081000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.252 in
Jacket (Insulation) Diameter [diameter]	6.4 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Shield Coverage	Wire Gauge	Cable Type	Length	Length	Shield Material	Jacket (Insulation) Material	Number of Conductors	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Voltage	Ratings	Jacket Color	Usage
Belden Inc. 6543PA 0081000	0.252 in	6.4 mm	Copper Bare	100 %	22 AWG	Multi-Pair	1000 ft	304.8 m	Aluminum	Plenum Polyvinylidene Fluoride (PVDF)	8	Foil	7	30 AWG	0.015 in	0.381 mm	Drain Wire Rip Cord	150 °C	-20 C	Fluorinated Ethylene-Propylene (FEP)	300 V	UL Style CMP	Gray	Security Sound

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.86

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 1000.0' (304.8m)
