6792425344F

Active

DIALIGHT

9MM HB/B PMI-24VDC W/O-RING

Search across all available documentation for this part.

Active

DIALIGHT

9MM HB/B PMI-24VDC W/O-RING

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 8.49

General part information

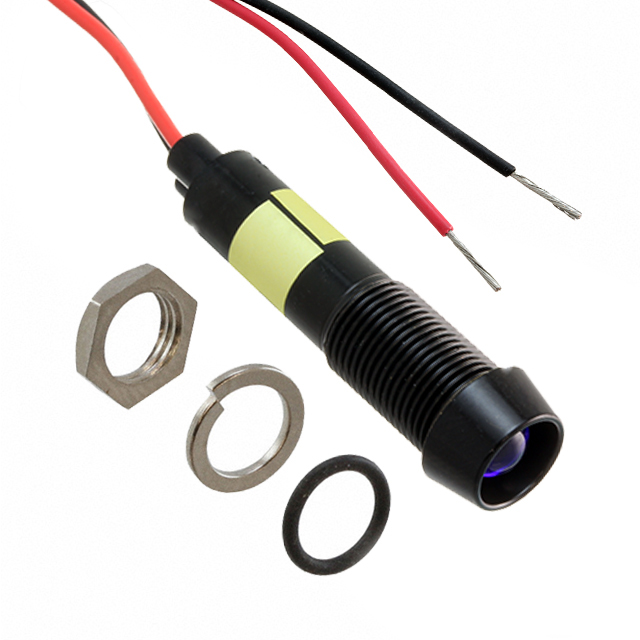

LED Panel Indicator Blue 24V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available

Specification	6792425344F	6792425 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Blue	Blue
Millicandela Rating	270 mcd	270 - 5400 mcd
Panel Cutout Dimensions	-	0.37 in
Panel Cutout Dimensions	-	9.35 mm
Panel Cutout Dimensions [custom]	0.37 in	0.37 in
Panel Cutout Dimensions [custom]	9.4 mm	9.4 mm
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Type	LED	LED
Viewing Angle	-	30 °
Voltage	24 V	6 - 24 V

Part	Ingress Protection	Lamp Color	Ratings	Type	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Panel Cutout Shape	Voltage	Millicandela Rating	Current	Viewing Angle	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6792425344F	IP66, NEMA 4X	Blue	DC	LED	0.37 in	9.4 mm	Round	24 V	270 mcd	30 mA
DIALIGHT 6792425324F	IP66, NEMA 4X	Blue	DC	LED			Round	6 V	5400 mcd	30 mA	30 °	0.37 in	9.35 mm
