AXE280124A

Obsolete

Panasonic Electric Works

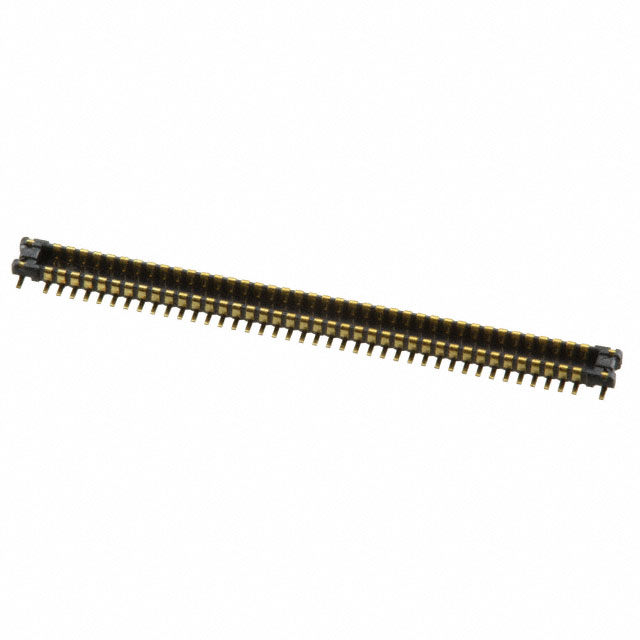

CONN HDR 80POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 80POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXE280124A

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.026 in
Height Above Board	0.65 mm
Mated Stacking Heights	0.8 mm
Mounting Type	Surface Mount
Number of Positions	80
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Contact Finish	Number of Positions	Number of Rows	Connector Type	Features	Mounting Type	Mated Stacking Heights	Height Above Board	Height Above Board	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]
Panasonic Electric Works AXE280124A	Gold	80	2	Header Outer Shroud Contacts	Solder Retention	Surface Mount	0.8 mm	0.026 in	0.65 mm	0.016 in	0.4 mm
Panasonic Electric Works AXE280224D	Gold	80	2	Header Outer Shroud Contacts	Solder Retention	Surface Mount	1 mm			0.016 in	0.4 mm	0.84 mm	0.033 "
Panasonic Electric Works AXE280124D	Gold	80	2	Header Outer Shroud Contacts	Solder Retention	Surface Mount	0.8 mm	0.026 in	0.65 mm	0.016 in	0.4 mm
Panasonic Electric Works AXE280324D	Gold	80	2	Header Outer Shroud Contacts	Solder Retention	Surface Mount	1.5 mm			0.016 in	0.4 mm	1.35 mm	0.053 in
