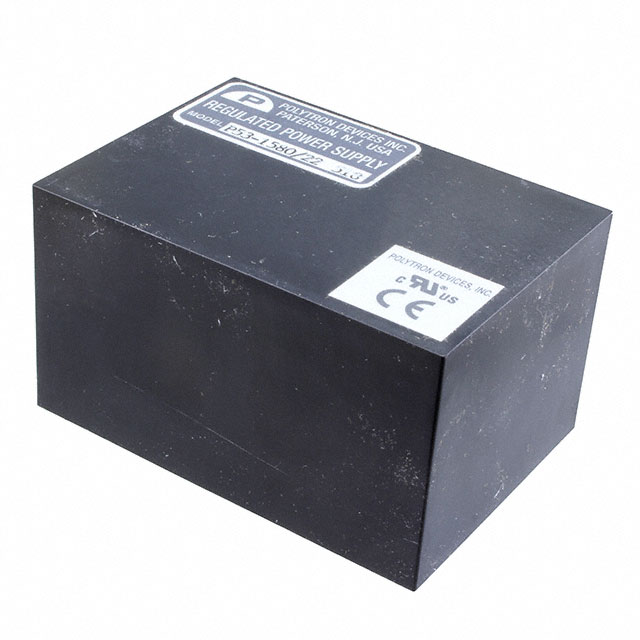

P53-1580/22
ActiveDaburn Electronics
AC/DC CONVERTER 5V +/-15V 9.5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P53-1580/22
ActiveDaburn Electronics
AC/DC CONVERTER 5V +/-15V 9.5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P53-1580/22 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, CSA, CE, cURus |
| Current - Output (Max) | 150 mA, 1 A |
| Line Regulation | 0.02 % |
| Load Regulation | 0.1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 7-DIP Module |
| Power (Watts) | 9.5 W |
| Size / Dimension [x] | 3.5 in |
| Size / Dimension [x] | 88.9 mm |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [y] | 63.5 mm |
| Size / Dimension [z] | 51 mm |
| Size / Dimension [z] | 2.01 in |
| Type | Enclosed |
| Voltage - Input [Max] | 125 VAC |
| Voltage - Input [Min] | 105 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 254.56 | |
| 5 | $ 245.47 | |||
| 10 | $ 241.83 | |||
Description
General part information
P53-1580 Series
Enclosed AC DC Converters 3 Output 5V 15V -15V 1A, 150mA, 150mA 105 ~ 125 VAC Input
