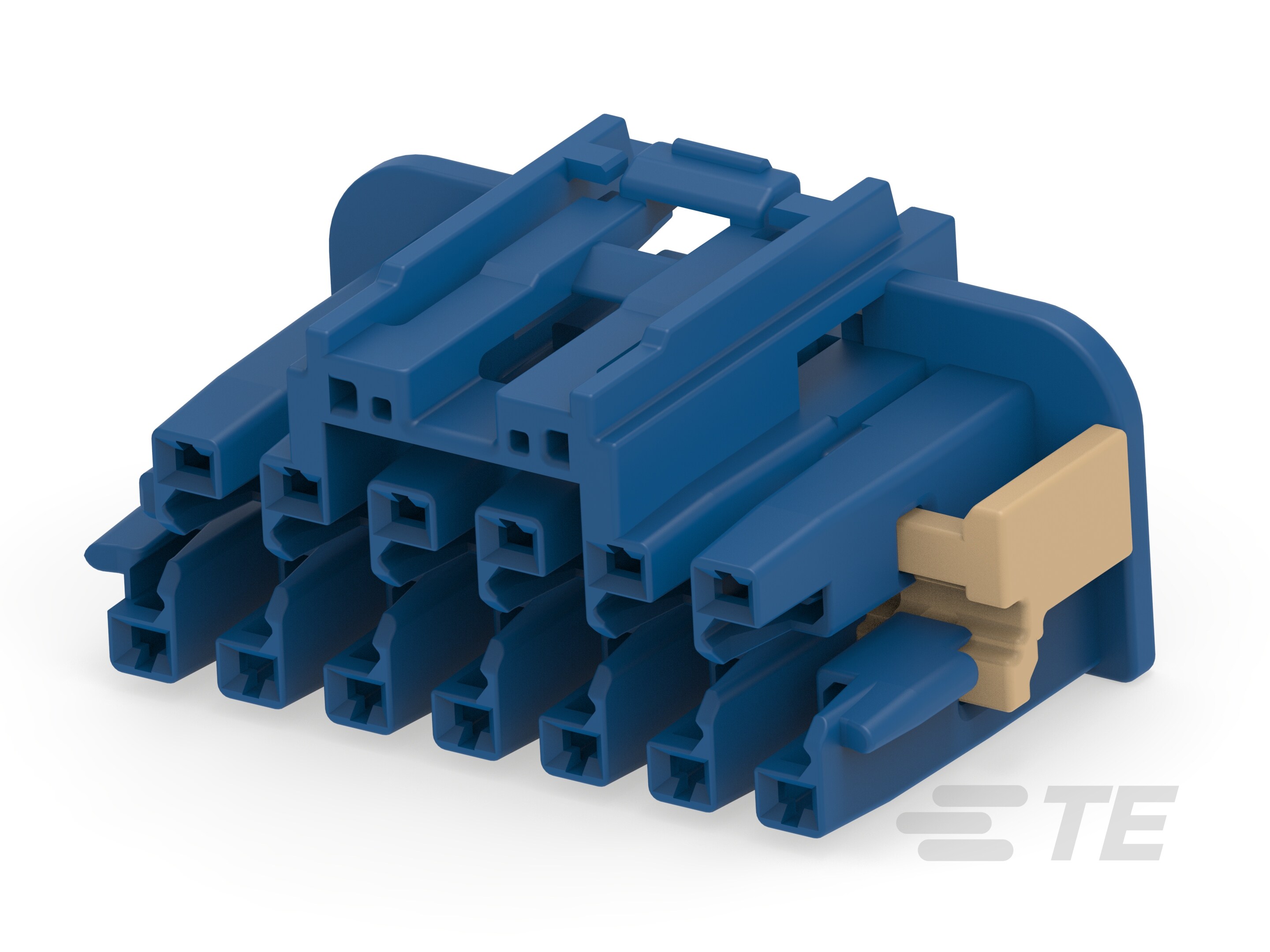

Specification	2203990-2

Color	Blue
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Connector Position Assurance (CPA)
Insulation Material	Nylon 6/6, Polyamide (PA66), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Number of Rows	2
Operating Temperature (Max)	170 °C
Operating Temperature (Min)	-40 °C
Pitch	0.177 in

MCON 1.2mm Series

...

Part	Pin or Socket	Type	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Contact Termination	Insulation Material	Row Spacing	Mounting Type	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Connector Type	Color	Number of Rows	Features	Fastening Type	Contact Type	Contact Finish Thickness
TE Connectivity AMP Connectors 7-1452659-3	Socket	Stamped	15 AWG	17 AWG	Tin	Crimp
TE Connectivity AMP Connectors 2-2378602-1
TE Connectivity AMP Connectors 1-2301521-5						Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.157 in	Free Hanging (In-Line)	0.157 in	-40 °C	150 °C	10	Receptacle	Black	2	Terminal Position Lock (TPA)	Locking Ramp	Tab
TE Connectivity AMP Connectors 2-1670918-1						Crimp	Glass Filled Nylon Polyamide (PA)		Free Hanging (In-Line)	0.157 in	-40 °C	130 °C	4	Housing for Female Insert	Black	1	Sealed	Slide-On	Female Socket
TE Connectivity AMP Connectors 1452503-1	Socket		15 AWG	17 AWG	Tin	Crimp														39.4 Ąin
TE Connectivity AMP Connectors 2359943-1						Crimp	Glass Filled Nylon 6/6 Polyamide (PA66)	0.118 in	Free Hanging (In-Line)	0.098 in	-40 °C	130 °C	96	Receptacle	Black	4	Sealed	Push-Pull	Female Socket
TE Connectivity AMP Connectors 1-1703498-3						Crimp	Glass Filled Polybutylene Terephthalate (PBT)		Free Hanging (In-Line)	0.157 in	-40 °C	125 °C	2	Plug	Black	1	Sealed	Latch Lock	Tab
TE Connectivity AMP Connectors 1-2301519-5						Crimp	Glass Filled Polybutylene Terephthalate (PBT)	0.157 in	Free Hanging (In-Line)	0.157 in	-40 °C	150 °C	4	Plug	Black	2	Terminal Position Lock (TPA)	Push-Pull	Tab
TE Connectivity AMP Connectors 1-2355514-5						Crimp	Glass Filled Polybutylene Terephthalate (PBT)			0.157 in	-40 °C	105 °C	4	Receptacle	Black	1		Latch Lock	Female Socket
TE Connectivity AMP Connectors 2098557-1						Crimp	Nylon 6/6 Polyamide (PA66)		Free Hanging (In-Line)	0.157 in			2	Receptacle		1	Sealed	Latch Lock	Female Socket
