1-1337586-0

Active

TE Connectivity AMP Connectors

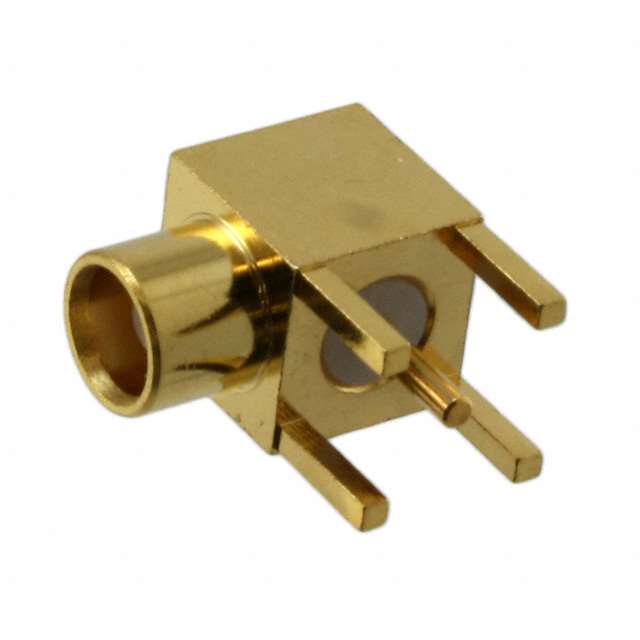

CONN MCX JACK R/A 50 OHM PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX JACK R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337586-0

Body Finish	Gold
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

CONN MCX JACK R/A 50 OHM PCB

Part	Voltage Rating	Number of Ports	Fastening Type	Mating Cycles	Connector Style	Insertion Loss	Impedance	Frequency - Max [Max]	Shield Termination	Dielectric Material	Connector Type	Center Contact Plating	Body Finish	Body Material	Mounting Type	Center Contact Material	Contact Termination	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 1-1337586-0	335 V	1	Snap-On	500	MCX	0.1 dB	50 Ohms	6000 MHz	Solder	Polytetrafluoroethylene (PTFE)	Female Socket, Jack	Gold	Gold	Brass	Through Hole, Right Angle	Phosphor Bronze	Solder	Gold	-65 ░C	165 °C
