C6040A.30.10

Active

Prysmian Group

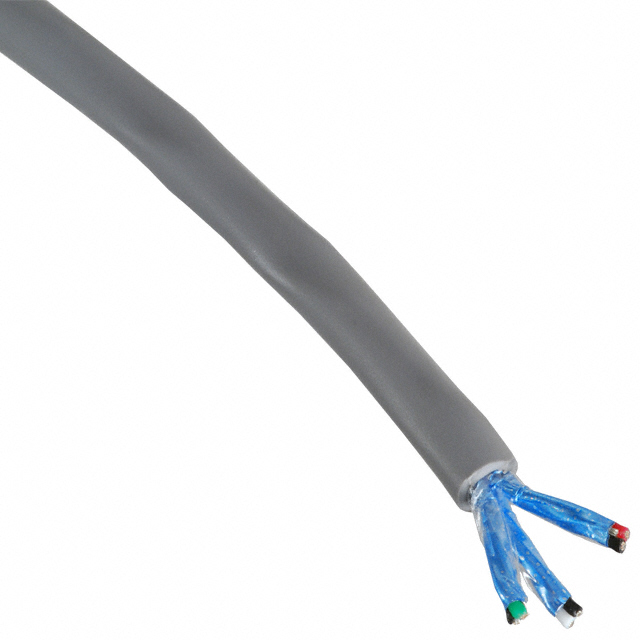

MULTI-PAIR 6CON 22AWG GRAY 1000'

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 6CON 22AWG GRAY 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C6040A.30.10

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.292 in
Jacket (Insulation) Diameter [diameter]	7.42 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	22 AWG

Part	Cable Type	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shield Material	Number of Conductors	Conductor Insulation	Conductor Material	Jacket (Insulation) Material	Length	Length	Wire Gauge	Jacket Color	Voltage	Shield Coverage	Length [x]	Length [x]
Prysmian Group C6040A.30.10	Multi-Pair	Foil	7	30 AWG	Computer	0.292 in	7.42 mm	-20 C	80 C	Drain Wire	Aluminum	6	Polyethylene (PE)	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	22 AWG	Gray	300 V	100 %
Prysmian Group C6040A.41.10	Multi-Pair	Foil	7	30 AWG	Computer	0.292 in	7.42 mm	-20 C	80 C	Drain Wire	Aluminum	6	Polyethylene (PE)	Copper Tinned	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	22 AWG	Gray	300 V	100 %
Prysmian Group C6040A.18.10	Multi-Pair	Foil	7	30 AWG	Computer	0.292 in	7.42 mm	-20 C	80 C	Drain Wire	Aluminum	6	Polyethylene (PE)	Copper Tinned	Poly-Vinyl Chloride (PVC)			22 AWG	Gray	300 V	100 %	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil 1000.0' (304.8m)

Technical documentation and resources

No documents available
