892-076-500-203
ActiveEDAC Inc.

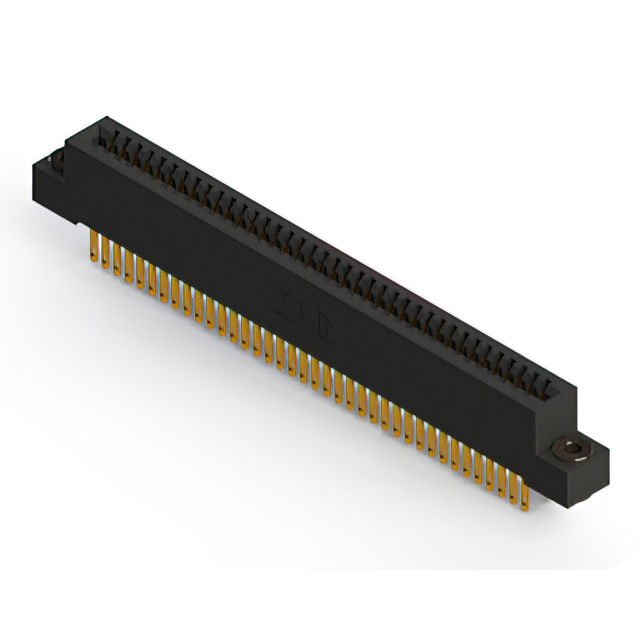

CONN EDGE DUAL FMALE 76POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-076-500-203 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
892-076 Series
| Part | Number of Positions | Contact Material | Number of Positions/Bay/Row [custom] | Color | Pitch [x] | Pitch [x] | Contact Type | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Contact Finish | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Mounting Type | Read Out | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Female | Through Hole | Dual | 2 | 10 Áin | 0.25 Ám | Solder | |
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Board Edge Straddle Mount | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Card Extender | ||
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | Board Edge Straddle Mount | Dual | 2 | 10 Áin | 0.25 Ám | Solder | Card Extender |
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Through Hole | Dual | 2 | 10 Áin | 0.25 Ám | Solder | |||
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | Female | Through Hole | Dual | 2 | 10 Áin | 0.25 Ám | Wire Wrap | ||||
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Female | Through Hole Right Angle | Dual | 2 | 10 Áin | 0.25 Ám | Solder | |
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | Through Hole Right Angle | Dual | 2 | 10 Áin | 0.25 Ám | Solder | |
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Female | Through Hole | Dual | 2 | 10 Áin | 0.25 Ám | Solder Eyelet(s) | |
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | Female | Through Hole | Dual | 2 | 10 Áin | 0.25 Ám | Solder | ||||
EDAC Inc. | 76 | Copper Alloy | 38 | Black | 2.54 mm | 0.1 in | Cantilever | Polyphenylene Sulfide (PPS) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Gold | 2 | 125 °C | -40 °C | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Female | Through Hole | Dual | 2 | 10 Áin | 0.25 Ám | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-076 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
