746X101104JP

Active

Tusonix a Subsidiary of CTS Electronic Components

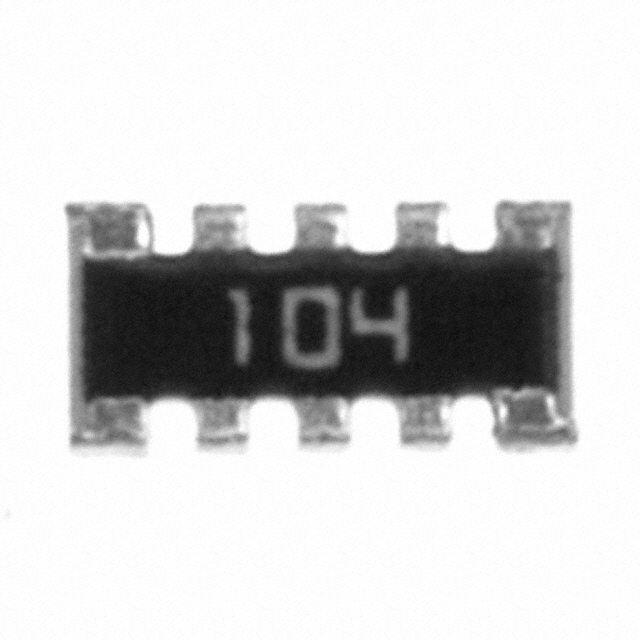

RES ARRAY 8 RES 100K OHM 1206

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746X101104JP

Active

Tusonix a Subsidiary of CTS Electronic Components

RES ARRAY 8 RES 100K OHM 1206

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746X101104JP

Applications	DDR SDRAM, DRAM, MDDR
Circuit Type	Bussed
Height - Seated (Max) [Max]	0.7 mm
Height - Seated (Max) [Max]	0.028 in
Mounting Type	Surface Mount
Number of Pins	10
Number of Resistors	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric), Convex, Long Side Terminals
Power Per Element	63 mW
Resistance (Ohms)	100 kOhms
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

746X101 Series

Part	Tolerance	Number of Pins	Package / Case	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Circuit Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Per Element	Temperature Coefficient	Applications	Resistance (Ohms)	Number of Resistors	Resistance (Ohms)	Tolerance
Tusonix a Subsidiary of CTS Electronic Components 746X101152J	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	1.5 kOhms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101104JP	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	100 kOhms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101682JP	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	6.8 Ohms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101152JP	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	1.5 kOhms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101473J	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR		8	47k
Tusonix a Subsidiary of CTS Electronic Components 746X101000XP		10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	0 Ohms	8		Jumper
Tusonix a Subsidiary of CTS Electronic Components 746X101104J	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	100 kOhms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101331JP	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	330 Ohms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101681JP	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	680 Ohms	8
Tusonix a Subsidiary of CTS Electronic Components 746X101330JP	5 %	10	1206 (3216 Metric) Convex Long Side Terminals	0.063 in	1.6 mm	0.126 "	3.2 mm	Surface Mount	0.7 mm	0.028 in	Bussed	-55 °C	125 °C	63 mW	200 ppm/°C	DDR SDRAM DRAM MDDR	33 Ohms	8
