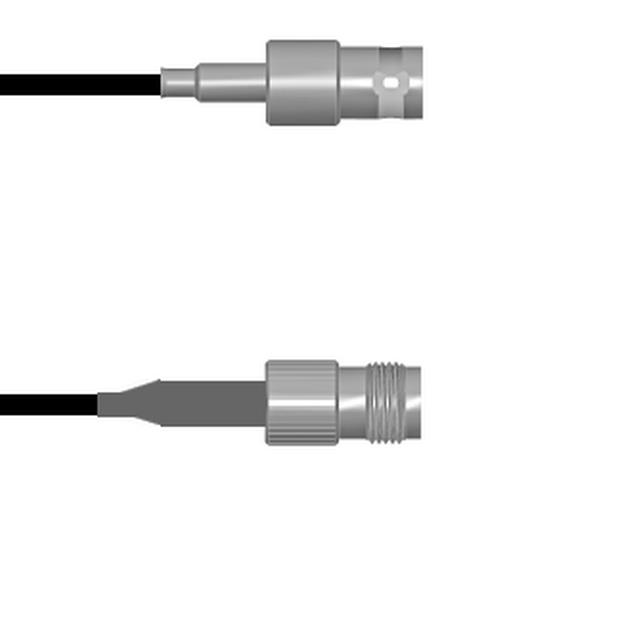

Q-0304G0003060i
ActiveAmphenol Custom Cable
CBL ASSY BNC-TNC JACK-JACK 5'
Deep-Dive with AI
Search across all available documentation for this part.
Q-0304G0003060i
ActiveAmphenol Custom Cable
CBL ASSY BNC-TNC JACK-JACK 5'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0304G0003060i |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 5 ft |
| Length | 1.5 m |
| Length | 5 ' |
| Overall Impedance | 50 Ohms |
| Style | BNC to TNC |
Q-0304G0 Series
| Part | 2nd Contact Gender | Overall Impedance | Style | 2nd Connector Mounting Type | Cable Type | Length | Length | Length | Features | Color | 1st Connector Mounting Type | Frequency - Max [Max] | 1st Contact Gender | 2nd Connector | 1st Connector | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 84 in | 2.1 m | 7 ft | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | ||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 29.53 " | 750 mm | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | |||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-316 | Shielded | Copper | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | 457.2 mm | 457.2 mm | |||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 72 in | 1.8 m | 6 ft | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | ||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 5 ' | 1.5 m | 5 ft | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | ||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-316 | 78.7 in | 2 m | 6.6 ft | Shielded | Copper | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | ||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-316 | 118.1 in | 3 m | 9.8 ' | Shielded | Copper | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | ||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 9 " | 228.6 mm | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | |||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 108 in | 2.7 m | 9 ft | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack | ||
Amphenol Custom Cable | Female | 50 Ohms | BNC to TNC | Free Hanging (In-Line) | RG-174 | 78.7 in | 2 m | 6.6 ft | Shielded | Black | Free Hanging (In-Line) | 4 GHz | Female | TNC Jack | BNC Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 50.41 | |
| 25 | $ 49.42 | |||
| 50 | $ 48.44 | |||
| 100 | $ 47.45 | |||
| 250 | $ 46.47 | |||
Description
General part information
Q-0304G0 Series
Cable Assembly Coaxial BNC to TNC RG-174 60.0" (1.5m) 5.0'
Documents
Technical documentation and resources
No documents available
