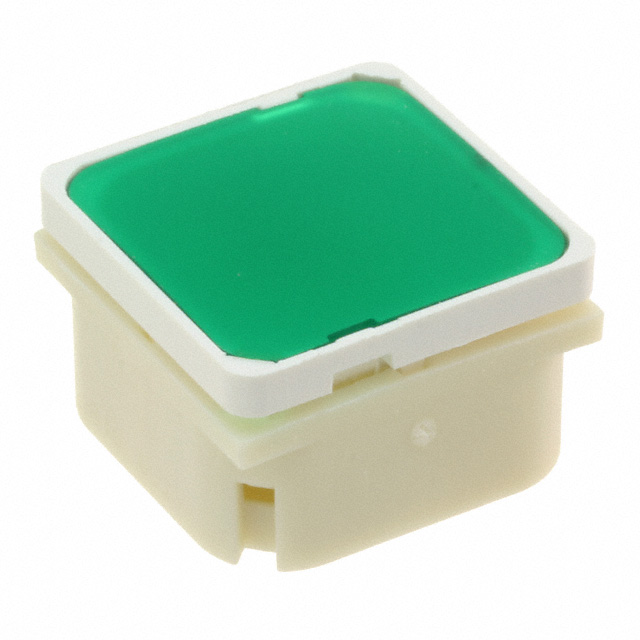

3.14.002.632/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3.14.002.632/0000

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3.14.002.632/0000

Actuator Height off PCB, Vertical [z]	12.5 mm
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	35 VAC/DC, 0.1 A
Illumination	Illuminated
Illumination Type, Color	LED, Green
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force [Max]	306 gf
Operating Force [Min]	204 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	19.05 mm
Outline [y]	19.05 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

3.14.002 Series

Part	Actuator Height off PCB, Vertical [z]	Illumination	Switch Function	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Mounting Type	Operating Force [Min]	Operating Force [Max]	Outline [x]	Outline [y]	Circuit	Contact Rating @ Voltage	Actuator Orientation	Switch Travel	Mechanical Life	Actuator Type	Actuator Height off PCB, Vertical	Operating Force	Contact Rating @ Voltage [custom]	Contact Rating @ Voltage [custom]
RAFI USA 3.14.002.632/0000	12.5 mm	Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	Green LED	Through Hole	204 gf	306 gf	19.05 mm	19.05 mm	SPST-NO	0.1 A 35 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button
RAFI USA 3.14.002.012/0000		Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	Green LED	Through Hole	204 gf	306 gf	19.05 mm	19.05 mm	SPST-NO	0.1 A 42 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button	9.7 mm
RAFI USA 3.14.002.689/0000	12.5 mm	Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED White	Through Hole	204 gf	306 gf	19.05 mm	19.05 mm	SPST-NO	0.25 A 50 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button
RAFI USA 3.14.002.027/0000		Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED Yellow	Through Hole			19.05 mm	19.05 mm	SPST-NO		Top Actuated	0.5 mm	1000000 Cycles	Square Button	9.7 mm	296 gf	35 VAC/DC	0.25 A
RAFI USA 3.14.002.613/0000	12.5 mm	Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED Red	Through Hole			19.05 mm	19.05 mm	SPST-NO	0.1 A 35 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button		296 gf
RAFI USA 3.14.002.013/0000		Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED Yellow	Through Hole	204 gf	306 gf	19.05 mm	19.05 mm	SPST-NO	0.1 A 42 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button	9.7 mm
RAFI USA 3.14.002.663/0000	12.5 mm	Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED Yellow	Through Hole			19.05 mm	19.05 mm	SPST-NO		Top Actuated	0.5 mm	1000000 Cycles	Square Button		296 gf	35 VAC/DC	0.25 A
RAFI USA 3.14.002.673/0000	12.5 mm	Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED Yellow	Through Hole			19.05 mm	19.05 mm	SPST-NO	0.1 A 35 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button		296 gf
RAFI USA 3.14.002.901/0000		Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	Green LED	Through Hole			19.05 mm	19.05 mm	SPST-NO	0.1 A 35 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button	9.7 mm	296 gf
RAFI USA 3.14.002.653/0000	12.5 mm	Illuminated	Off-Mom	PC Pin	70 °C	-25 °C	LED Yellow	Through Hole			19.05 mm	19.05 mm	SPST-NO	0.1 A 35 VAC/DC	Top Actuated	0.5 mm	1000000 Cycles	Square Button		296 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.43
		10	$ 13.29
		25	$ 12.19
		100	$ 10.67
		250	$ 9.76
		500	$ 9.10
		1000	$ 8.56

Description

General part information

3.14.002 Series

Tactile Switch SPST-NO Top Actuated Through Hole
