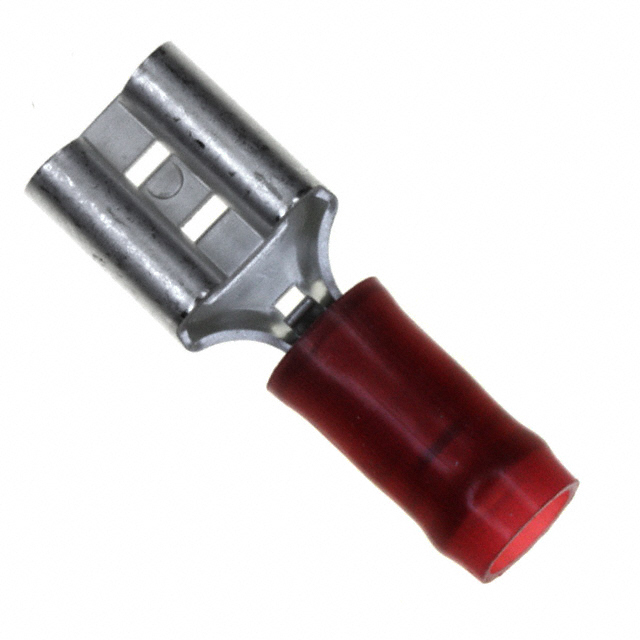

140805-2

Active

TE Connectivity AMP Connectors

TERMINAL REC FASTON PIDG 5

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

TERMINAL REC FASTON PIDG 5

Technical Specifications

Parameters and characteristics for this part

Specification	140805-2

Color	Red
Contact Finish	Silver
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	3.3 mm
Insulation Diameter [diameter]	0.13 in
Length - Overall [x]	21.59 mm
Length - Overall [x]	0.85 "
Mounting Type	Free Hanging (In-Line)
Tab Length	0.311 in
Tab Length	7.9 mm
Tab Thickness	0.031 "
Tab Thickness	0.79 mm
Tab Width	5 mm
Tab Width	0.197 in
Terminal Type	Standard
Termination	Crimp

TERMINAL REC FASTON PIDG 5

Part	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Tab Thickness	Tab Thickness	Contact Finish	Terminal Type	Tab Width	Tab Width	Termination	Tab Length	Tab Length	Insulation	Color	Contact Material	Mounting Type	Gender	Length - Overall [x]	Length - Overall [x]
TE Connectivity AMP Connectors 140805-2	3.3 mm	0.13 in	0.031 "	0.79 mm	Silver	Standard	5 mm	0.197 in	Crimp	0.311 in	7.9 mm	Non-Mating End Insulated	Red	Brass	Free Hanging (In-Line)	Female	21.59 mm	0.85 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.197" (5.00mm) Quick Connect Female 17-22 AWG Crimp Connector Non-Mating End Insulated
