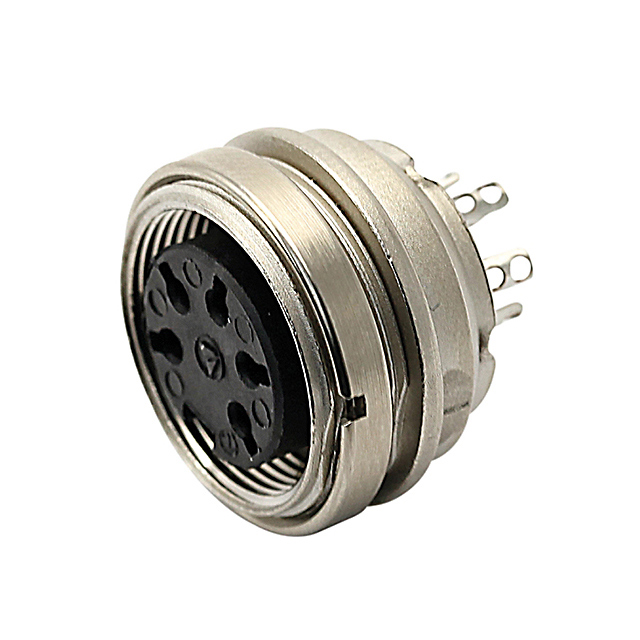

T 3363 150

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 5POS PNL MT

T 3363 150

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 5POS PNL MT

Description Specifications Series Pricing CAD Documents

Description

General part information

T 3363 Series

5 Position Circular Connector Receptacle Housing Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification	T 3363 150

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Threaded
Housing Color	Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	5
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Type	For Female Sockets

T 3363 Series

Part	Voltage Rating	Shell Finish	Orientation	Ingress Protection	Primary Material	Shell Material	Shielding	Shell Size - Insert	Mounting Type	Fastening Type	Current Rating	Contact Finish - Mating	Termination	Color	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Type	Note	Contact Type	Housing Color	Contact Shape	Material Flammability Rating	Mounting Feature	Contact Size	Insert Material
Amphenol Tuchel Industrial T 3363 330	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount Through Hole	Threaded	7 A	Silver	Solder	Silver	Female Sockets Receptacle	100 °C	-40 °C	5
Amphenol Tuchel Industrial T 3363 150		Nickel	Keyed	IP40		Die Cast	Shielded	M16-5	Panel Mount	Threaded					Receptacle Housing	100 °C	-40 °C	5	For Female Sockets	Contacts Not Included	Crimp	Silver	Circular	UL94 V-0	Bulkhead Front Side Nut	1.5 mm	Thermoplastic
Amphenol Tuchel Industrial T 3363 109	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount	Threaded	7 A	Silver	Solder Cup	Silver	Female Sockets Receptacle	100 °C	-40 °C	5							Bulkhead Front Side Nut
Amphenol Tuchel Industrial T 3363 018	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount	Threaded	7 A	Gold	Solder Cup	Silver	Female Sockets Receptacle	100 °C	-40 °C	5
Amphenol Tuchel Industrial T 3363 320	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount Through Hole	Threaded	7 A	Silver	Solder	Silver	Female Sockets Receptacle	100 °C	-40 °C	5
Amphenol Tuchel Industrial T 3363 434	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount Through Hole	Threaded	7 A	Gold	Solder	Silver	Female Sockets Receptacle	100 °C	-40 °C	5
Amphenol Tuchel Industrial T 3363 430	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount Through Hole	Threaded	7 A	Silver	Solder	Silver	Female Sockets Receptacle	100 °C	-40 °C	5
Amphenol Tuchel Industrial T 3363 550		Nickel	Keyed	IP40		Die Cast	Shielded	M16-5	Panel Mount	Threaded					Receptacle Housing	100 °C	-40 °C	5	For Female Sockets	Contacts Not Included	Crimp	Silver	Circular	UL94 V-0	Bulkhead Rear Side Nut	1.5 mm	Thermoplastic
Amphenol Tuchel Industrial T 3363 420	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount Through Hole	Threaded	7 A	Silver	Solder	Silver	Female Sockets Receptacle	100 °C	-40 °C	5
Amphenol Tuchel Industrial T 3363 300	250 V	Nickel	Keyed	IP40	Metal	Die Cast	Shielded	M16-5	Panel Mount Through Hole	Threaded	7 A	Silver	Solder	Silver	Female Sockets Receptacle	100 °C	-40 °C	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

T 3363 150 | Datasheet

C091 A,B,D Series Catalog
