H3BKH-1018M

Active

Assmann WSW Components

IDC CBL - HHSR10H/AE10M/HHPK10H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHSR10H/AE10M/HHPK10H

Technical Specifications

Parameters and characteristics for this part

Specification	H3BKH-1018M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Strain Relief (Socket)
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Cable Termination	Number of Positions	Features	Contact Finish	Pitch - Connector	Pitch - Connector	Connector Type	Length	Length	Length	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Shielding	Length [x]	Length [x]	Color
Assmann WSW Components H3BKH-1006G	IDC	10	Polarizing Key (Plug) Strain Relief (Socket)	Gold	0.1 in	2.54 mm	Socket to Plug	152.4 mm	6 "	0.5 '	0.05 "	1.27 mm	15 µin	0.38 µm	2	Unshielded
Assmann WSW Components H3BKH-1018M	IDC	10	Polarizing Key (Plug) Strain Relief (Socket)	Gold	0.1 in	2.54 mm	Socket to Plug				0.05 "	1.27 mm	15 µin	0.38 µm	2	Unshielded	457.2 mm	1.5 ft	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

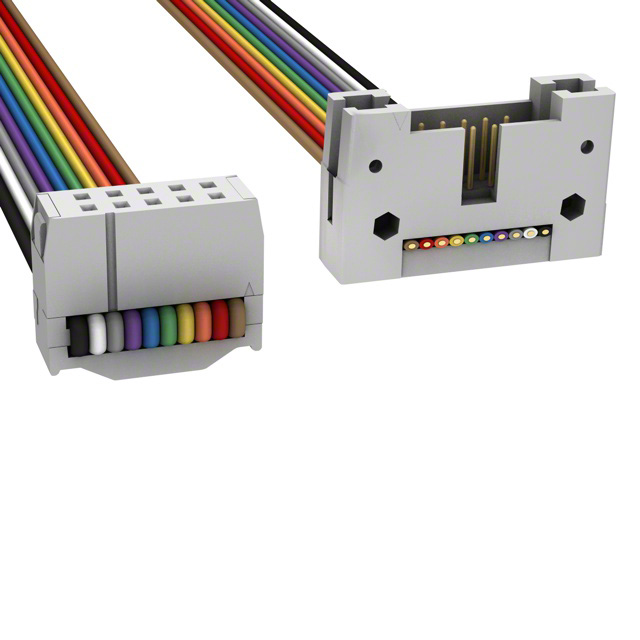

10 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
