8337 060500

Active

Belden Inc.

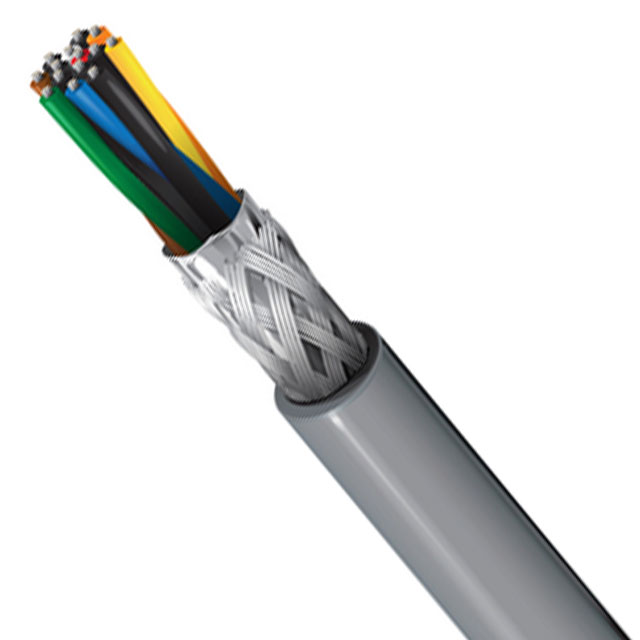

MULTI-PAIR 14COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 14COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8337 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.321 "
Jacket (Insulation) Diameter [diameter]	8.15 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	14
Number of Conductors [custom]	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Length [x]	Length [x]	Jacket Color	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Number of Conductors	Number of Conductors [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Cable Type	Voltage	Conductor Insulation	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Ratings
Belden Inc. 8337 060500	500 '	152.4 m	Chrome	65 % 100 %	0.889 mm	0.035 in	Computer	14	7	0.321 "	8.15 mm	Aluminum Copper Tinned	Poly-Vinyl Chloride (PVC)	32 AWG	7	Copper Tinned	Multi-Pair	300 V	Poly-Vinyl Chloride (PVC)	Braid Foil	-30 ░C	80 C	24 AWG	UL Style 2464

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 5.83

General part information

14 (7 Pair) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 500.0' (152.4m)
