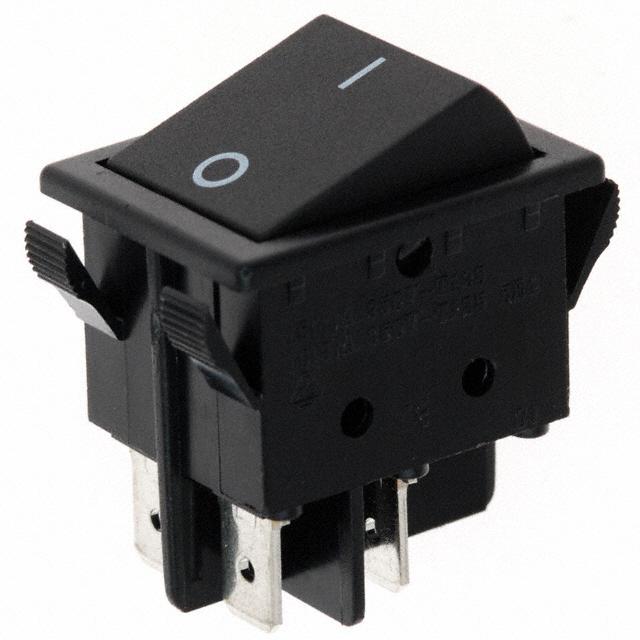

WRG32F5FBBNN
ActiveZF Electronics
SWITCH ROCKER DPST 16A 125V
WRG32F5FBBNN
ActiveZF Electronics
SWITCH ROCKER DPST 16A 125V
Description
General part information
WRG32F5F Series
Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Technical Specifications
Parameters and characteristics for this part
| Specification | WRG32F5FBBNN |
|---|---|
| Actuator Marking | O |
| Actuator Type | Flat |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating | 16 A |
| Electrical Life (Cycles) | 6000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Length | 30 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 22 mm |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
