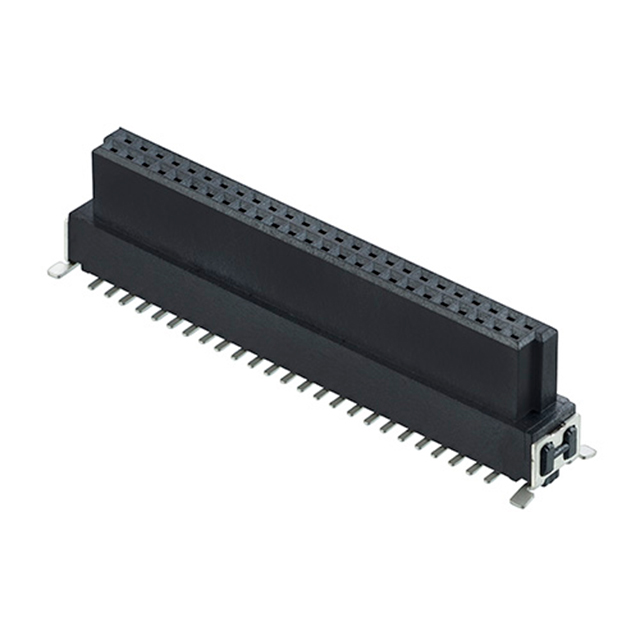

M55-6015042R

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 50 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM55-6001242R Datasheet +2

M55-6015042R

Active

Harwin Inc.

PCB RECEPTACLE, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 50 CONTACTS, SURFACE MOUNT, KONTROL M55 SERIES

Deep-Dive with AI

DocumentsM55-6001242R Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M55-6015042R

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µin
Contact Finish Thickness - Mating	0.025 µm
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Female Socket
Current Rating (Amps)	1.2 A
Fastening Type	Latch Holder
Features	Pick and Place, Board Guide, Solder Retention
Insulation Color	Black
Insulation Height [z]	0.356 in
Insulation Height [z]	9.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mated Stacking Heights	12.3 mm, 13.9 mm, 10.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Termination	Solder
Voltage Rating	100 VAC

M55-601 Series

Part	Material Flammability Rating	Number of Rows	Insulation Material	Number of Positions Loaded	Insulation Color	Contact Shape	Contact Material	Voltage Rating	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Mated Stacking Heights	Applications	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Contact Type	Pitch - Mating	Pitch - Mating	Termination
Harwin Inc. M55-6018042R	UL94 V-0	2	Liquid Crystal Polymer (LCP)	All	Black	Rectangular	Phosphor Bronze	100 VAC	Latch Holder	1.2 A	Gold	Surface Mount	1 µin	0.025 µm	Receptacle	10.8 mm 12.3 mm 13.9 mm	Automotive General Purpose Industrial	Tin	0.05 in	1.27 mm	2.54 µm	100 µin	0.356 in	9.05 mm	-55 °C	125 °C	80	Board Guide Pick and Place Solder Retention	Female Socket	0.05 in	1.27 mm	Solder
Harwin Inc. M55-6014042R	UL94 V-0	2	Liquid Crystal Polymer (LCP)	All	Black	Rectangular	Phosphor Bronze	100 VAC	Latch Holder	1.2 A	Gold	Surface Mount	1 µin	0.025 µm	Receptacle	10.8 mm 12.3 mm 13.9 mm	Automotive General Purpose Industrial	Tin	0.05 in	1.27 mm	2.54 µm	100 µin	0.356 in	9.05 mm	-55 °C	125 °C	40	Board Guide Pick and Place Solder Retention	Female Socket	0.05 in	1.27 mm	Solder
Harwin Inc. M55-6015042R	UL94 V-0	2	Liquid Crystal Polymer (LCP)	All	Black	Rectangular	Phosphor Bronze	100 VAC	Latch Holder	1.2 A	Gold	Surface Mount	1 µin	0.025 µm	Receptacle	10.8 mm 12.3 mm 13.9 mm	Automotive General Purpose Industrial	Tin	0.05 in	1.27 mm	2.54 µm	100 µin	0.356 in	9.05 mm	-55 °C	125 °C	50	Board Guide Pick and Place Solder Retention	Female Socket	0.05 in	1.27 mm	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.51
		10	$ 4.09
		100	$ 3.61
	Digi-Reel®	1	$ 4.51
		10	$ 4.09
		100	$ 3.61
	Tape & Reel (TR)	400	$ 3.15
		800	$ 2.79
		1200	$ 2.61
		2000	$ 2.52
		2800	$ 2.43
Newark	Each (Supplied on Full Reel)	250	$ 3.47
		500	$ 3.20
		1000	$ 2.93
		2500	$ 2.65

Description

General part information

M55-601 Series

50 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold

Documents

Technical documentation and resources

M55-6001242R

Datasheet

M55-6001242R

Technical Data Sheet EN

Datasheet
