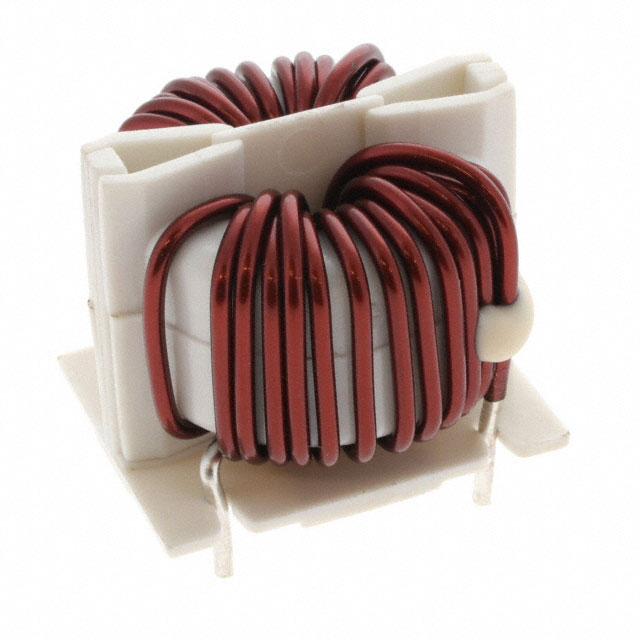

SCR25-200-1R7A008JH
ActiveKEMET
CMC 800UH 20A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
SCR25-200-1R7A008JH
ActiveKEMET
CMC 800UH 20A 2LN TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SCR25-200-1R7A008JH |
|---|---|
| Current Rating (Max) [Max] | 20 A |
| Filter Type | Power Line |
| Height (Max) | 26 mm |
| Height (Max) [Max] [z] | 1.024 in |
| Inductance @ Frequency | 10 kHz, 800 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [diameter] | 1.378 in |
| Size / Dimension [diameter] | 35 mm |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.26 | |
| 10 | $ 5.52 | |||
| 35 | $ 5.37 | |||
| 70 | $ 4.94 | |||
| 105 | $ 4.65 | |||
| 280 | $ 4.50 | |||
| 525 | $ 4.36 | |||
| 1015 | $ 4.21 | |||
Description
General part information
SCR25-200 Series
800 µH @ 10 kHz 2 Line Common Mode Choke Through Hole 20A DCR 4.7mOhm
