Q-0D01F0005002M

Active

McGill Microwave Systems

CBL ASSY BNC-MCX PLUG-PLUG 6.6'

Q-0D01F0005002M

Active

McGill Microwave Systems

CBL ASSY BNC-MCX PLUG-PLUG 6.6'

Description Specifications Series Pricing CAD Documents

Description

General part information

Q-0D01F0 Series

Cable Assembly Coaxial BNC to MCX RG-316 78.7" (2.0m) 6.6'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D01F0005002M

1st Connector	Right Angle, BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG, 316
Color	Copper
Features	Shielded
Frequency - Max	4 GHz
Length (ft)	6.6 ft
Overall Impedance	50 Ohms
Style	MCX, BNC

Q-0D01F0 Series

Part	Overall Impedance	2nd Contact Gender	2nd Connector	Style	Length	Frequency - Max	Color	2nd Connector Mounting Type	Features	1st Contact Gender	1st Connector Mounting Type	1st Connector	Cable Type	Length (ft)
McGill Microwave Systems Q-0D01F0005024i	50 Ohms	Male	MCX Plug	BNC MCX	24 in	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
McGill Microwave Systems Q-0D01F0005048i	50 Ohms	Male	MCX Plug	BNC MCX	48 in	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
McGill Microwave Systems Q-0D01F0005018i	50 Ohms	Male	MCX Plug	BNC MCX	18 in	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
McGill Microwave Systems Q-0D01F0005003i	50 Ohms	Male	MCX Plug	BNC MCX	3 "	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
McGill Microwave Systems Q-0D01F0005072i	50 Ohms	Male	MCX Plug	BNC MCX	72 in	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
McGill Microwave Systems Q-0D01F0005002M	50 Ohms	Male	MCX Plug	BNC MCX		4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG	6.6 ft

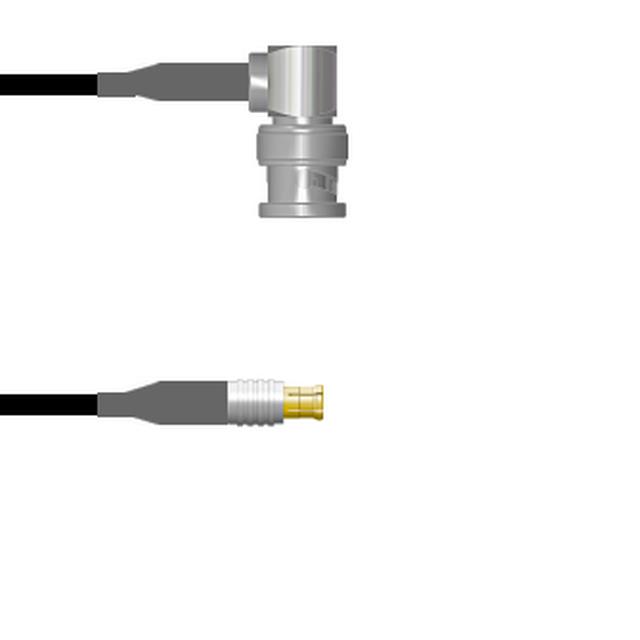

McGill Microwave Systems Q-0D01F0003.75M	50 Ohms	Male	MCX Plug	BNC MCX	29.53 in	4 GHz	Black	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	174 RG
McGill Microwave Systems Q-0D01F0005009i	50 Ohms	Male	MCX Plug	BNC MCX	228.6 mm	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
McGill Microwave Systems Q-0D01F0003084i	50 Ohms	Male	MCX Plug	BNC MCX	84 in	4 GHz	Black	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	174 RG	7 ft
McGill Microwave Systems Q-0D01F0005108i	50 Ohms	Male	MCX Plug	BNC MCX	9 ft	4 GHz	Copper	Free Hanging (In-Line)	Shielded	Male	Free Hanging (In-Line)	BNC Plug Right Angle	316 RG
