AXK810125WG

Obsolete

Panasonic Electric Works

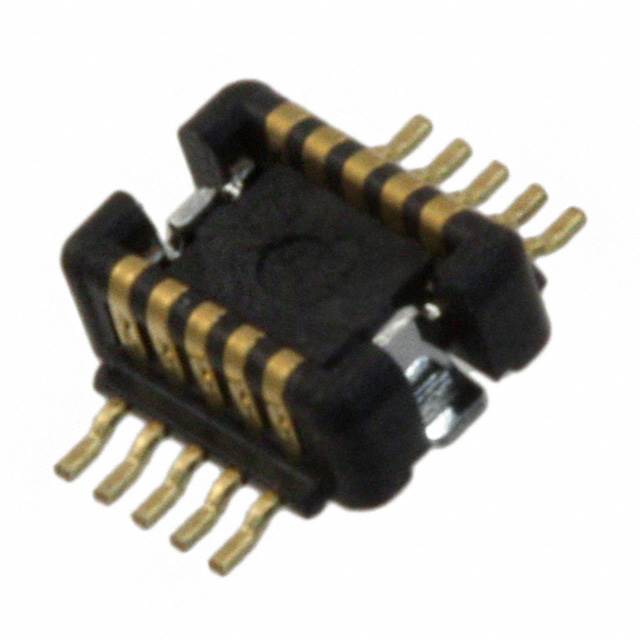

CONN HDR 10POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN HDR 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK810125WG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.052 in
Height Above Board	1.32 mm
Mated Stacking Heights	1.5 mm, 2 mm, 2.5 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Features	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Connector Type	Number of Rows	Mated Stacking Heights
Panasonic Electric Works AXK810125WG	Solder Retention	Gold	Surface Mount	0.016 in	0.4 mm	0.052 in	1.32 mm	10	Header Outer Shroud Contacts	2	1.5 mm 2 mm 2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
