C2525A.18.10

Active

Prysmian Group

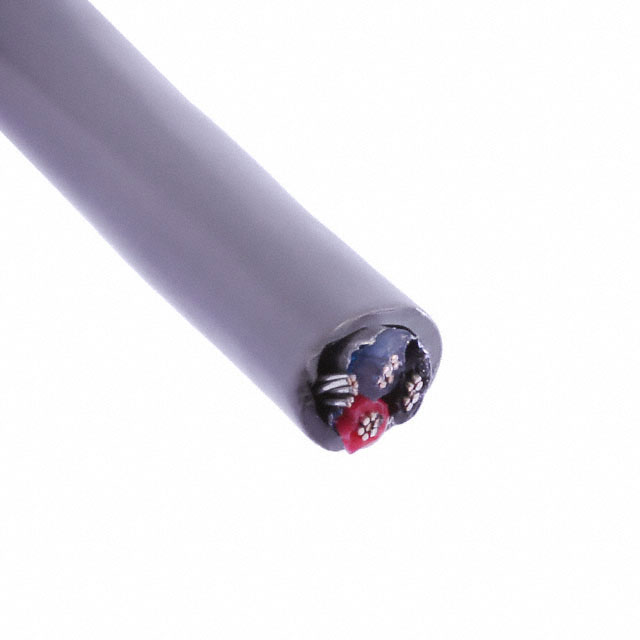

CABLE 3COND 20AWG GRAY SHLD

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C2525A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Material	Shield Coverage	Conductor Insulation	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Jacket Color	Voltage	Conductor Material	Shield Type	Usage	Number of Conductors	Shield Material	Wire Gauge	Length [x]	Length [x]	Length	Length
Prysmian Group C2525A.18.10	Poly-Vinyl Chloride (PVC)	100 %	Polyethylene (PE)	ASTM B-33	0.762 mm	0.03 in	Drain Wire	28	7	Multi-Conductor	Gray	300 V	Copper Annealed Tinned	Foil	Communication Control	3	Flexfoil®	20 AWG	500 '	152.4 m
Prysmian Group C2525A.41.10	Poly-Vinyl Chloride (PVC)	100 %	Polyethylene (PE) Polypropylene (PP)	ASTM B-33	0.762 mm	0.03 in	Drain Wire	28	7	Multi-Conductor	Gray	300 V	Copper Annealed Tinned	Foil		3	Flexfoil®	20 AWG			1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 20 AWG Foil 500.0' (152.4m)
