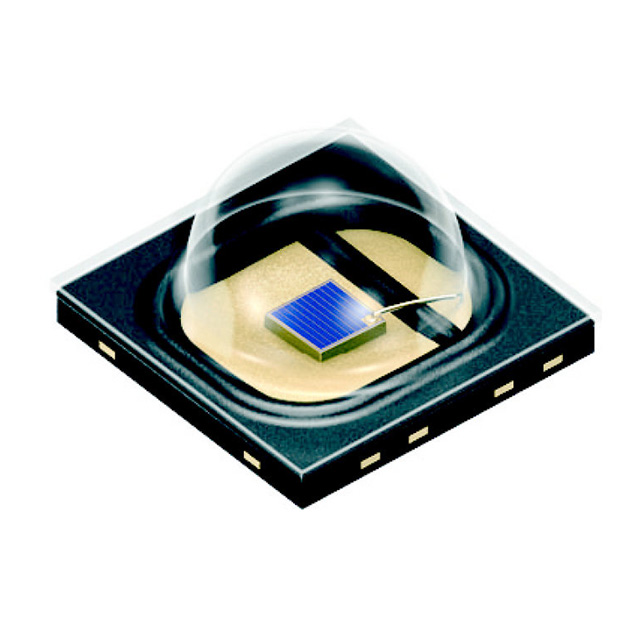

SFH 4713A

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 1A

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EMITTER IR 860NM 1A

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 4713A

Current - DC Forward (If) (Max)	1 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	3-SMD, No Lead
Radiant Intensity (Ie) Min @ If [Min]	250 mW/sr
Type	Infrared (IR)
Viewing Angle [custom]	90 °
Voltage - Forward (Vf) (Typ)	1.75 V
Wavelength	860 nm

EMITTER IR 860NM 1A

Part	Wavelength	Current - DC Forward (If) (Max)	Voltage - Forward (Vf) (Typ)	Viewing Angle [custom]	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Orientation	Radiant Intensity (Ie) Min @ If [Min]
ams-OSRAM USA INC. SFH 4713A	860 nm	1 A	1.75 V	90 °	Surface Mount	Infrared (IR)	-40 °C	125 °C	3-SMD, No Lead	Top View	250 mW/sr

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 860nm 1.75V 1A 250mW/sr @ 1A 90° 3-SMD, No Lead
