Q-1U03S0005009i

Active

Amphenol Custom Cable

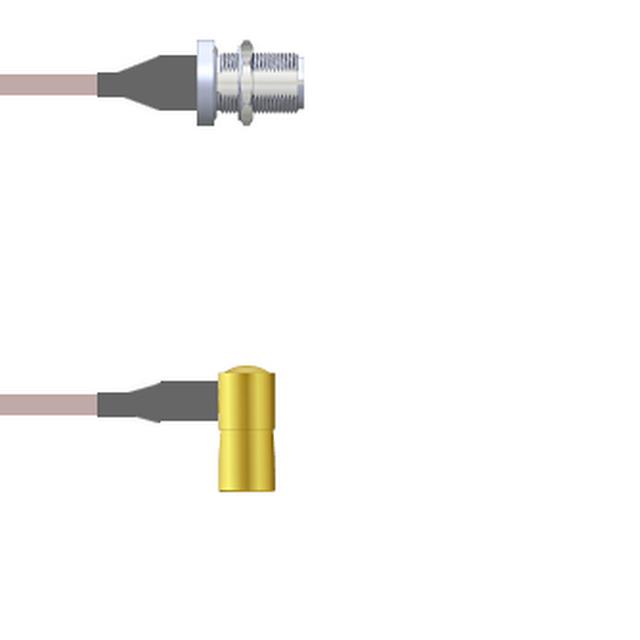

CBL ASSY SMB-NTYPE PLUG-JACK 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U03S0005009i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U03S0005009i

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1U03S0 Series

Part	Style	Features	2nd Connector Mounting Feature	Length	Length	Length	2nd Connector Mounting Type	1st Connector Mounting Type	Cable Type	2nd Contact Gender	1st Connector	Overall Impedance	2nd Connector	1st Contact Gender	Color	Frequency - Max [Max]
Amphenol Custom Cable Q-1U03S0003001M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	1 m	3.3 ft	39.4 in	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz
Amphenol Custom Cable Q-1U03S0005009i	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	228.6 mm		9 "	Panel Mount	Free Hanging (In-Line)	RG-316	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Copper	4 GHz
Amphenol Custom Cable Q-1U03S0003006i	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	152.4 mm		6 in	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz
Amphenol Custom Cable Q-1U03S00030.5M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	50 cm		19.69 "	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz
Amphenol Custom Cable Q-1U03S00050.5M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	50 cm		19.69 "	Panel Mount	Free Hanging (In-Line)	RG-316	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Copper	4 GHz
Amphenol Custom Cable Q-1U03S00032.5M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	2.5 m	8.2 '	98.4 in	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz
Amphenol Custom Cable Q-1U03S0005001M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	1 m	3.3 ft	39.4 in	Panel Mount	Free Hanging (In-Line)	RG-316	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Copper	4 GHz
Amphenol Custom Cable Q-1U03S0003036i	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	91.44 cm		36 in	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz
Amphenol Custom Cable Q-1U03S0003002M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	2 m	6.6 ft	78.7 in	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz
Amphenol Custom Cable Q-1U03S00031.5M	SMB to N-Type	Shielded	Bulkhead - Front Side Nut	1.5 m	4.9 ft	59.1 in	Panel Mount	Free Hanging (In-Line)	RG-174	Female	Right Angle SMB Plug	50 Ohms	N-Type Jack	Female	Black	4 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 117.70
		25	$ 115.46
		50	$ 113.21
		100	$ 110.96
		250	$ 108.72

Description

General part information

Q-1U03S0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
