8619 0601000

Active

Belden Inc.

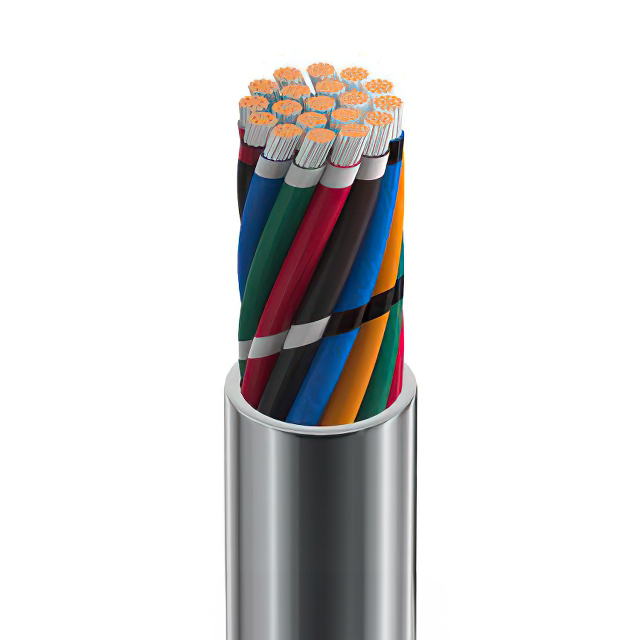

CABLE 19COND 18AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 19COND 18AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	8619 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.49 "
Jacket (Insulation) Diameter [diameter]	12.45 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	19
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2598
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Cable Type	Number of Conductors	Jacket Color	Jacket (Insulation) Material	Ratings	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Wire Gauge
Belden Inc. 8619 0601000	0.49 "	12.45 mm	Audio Control Instrumentation	19	30 AWG	1000 ft	304.8 m	Multi-Conductor	19	Chrome	Poly-Vinyl Chloride (PVC)	UL Style 2598	Copper Tinned	1.143 mm	0.045 in	300 V	-20 C	60 °C	Poly-Vinyl Chloride (PVC)	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 12.38

General part information

19 Conductor Multi-Conductor Cable Chrome 18 AWG 1000.0' (304.8m)
