TRAPC8MX

Active

Switchcraft Inc.

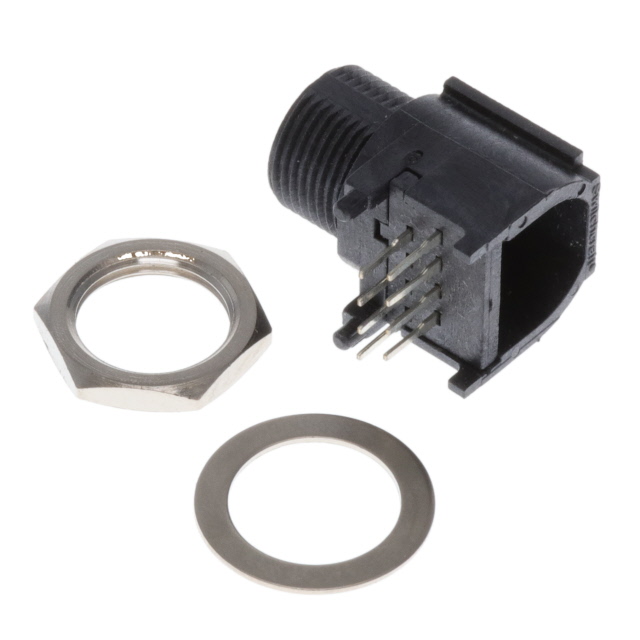

CONN RCPT MALE MINI XLR 8P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 8P SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TRAPC8MX	TRAPC8 Series

Applications	Medical, Testing Equipment & Measurement, Audio	Medical, Testing Equipment & Measurement, Audio
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Material	Brass	Brass
Current Rating (Amps)	1.5 A	1.5 A
Fastening Type	Latch Lock	Latch Lock
Features	Board Guide	Board Guide
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	8	8
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Size - Insert	Mini XLR	Mini XLR
Termination	Solder	Solder

CONN RCPT MALE MINI XLR 8P SLDR

Part	Color	Contact Material	Current Rating (Amps)	Fastening Type	Applications	Primary Material	Number of Positions	Termination	Features	Insert Material	Mounting Feature	Mounting Type	Connector Type	Shell Size - Insert	Orientation
Switchcraft Inc. TRAPC8MX	Black	Brass	1.5 A	Latch Lock	Audio, Medical, Testing Equipment & Measurement	Plastic	8	Solder	Board Guide	Thermoplastic	Bulkhead - Front Side Nut	Through Hole, Right Angle	Male Pins, Receptacle	Mini XLR	Keyed
Switchcraft Inc. TRAPC8M1X	Black	Brass	1.5 A	Latch Lock	Audio, Medical, Testing Equipment & Measurement	Plastic	8	Solder	Board Guide	Thermoplastic		Through Hole, Right Angle	Male Pins, Receptacle	Mini XLR	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
