271,AL

Active

Serpac

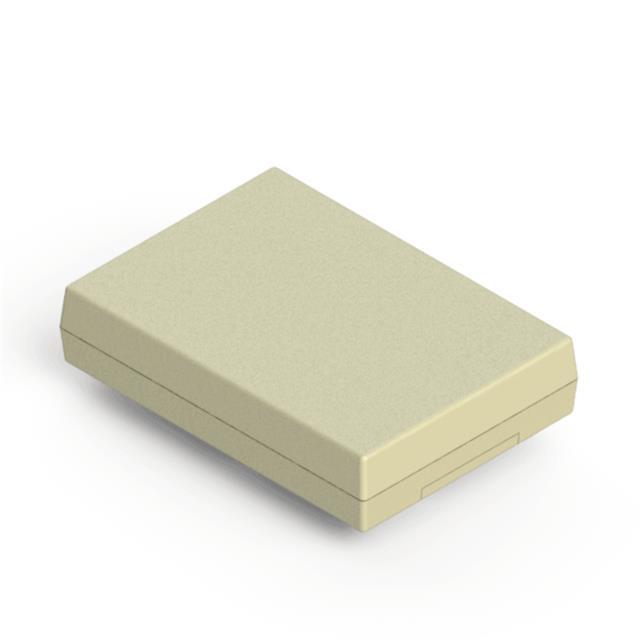

BOX ABS ALMOND 6.88"L X 4.88"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.88"L X 4.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	271,AL

Area (L x W)	33.6 in²
Area (L x W)	217 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Battery Compartment, PCB Supports
Features	9 V
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	174.75 mm
Size / Dimension [x]	6.88 in
Size / Dimension [y]	123.95 mm
Size / Dimension [y]	4.88 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	210.01 g
Weight	0.463 lb

Part	Area (L x W)	Area (L x W)	Ratings	Material Flammability Rating	Thickness	Thickness	Color	Design	Weight	Weight	Material	Container Type	Features	Features	Height [z]	Height [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]
Serpac 271,GY	33.6 in²	217 cm²	IP40 NEMA 1	UL94 HB	2.54 mm	0.1 in	Gray	Hand Held Split Sides	210.01 g	0.463 lb	Plastic ABS	Box	Battery Compartment PCB Supports	9 V	38.1 mm	1.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in
Serpac 271,AL	33.6 in²	217 cm²	IP40 NEMA 1	UL94 HB	2.54 mm	0.1 in	Almond	Hand Held Split Sides	210.01 g	0.463 lb	Plastic ABS	Box	Battery Compartment PCB Supports	9 V	38.1 mm	1.5 in	123.95 mm	174.75 mm	4.88 in	6.88 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.47

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.500" (38.10mm)

Technical documentation and resources

No documents available
