CRS2512-FX-1004ELF

Active

Bourns Inc.

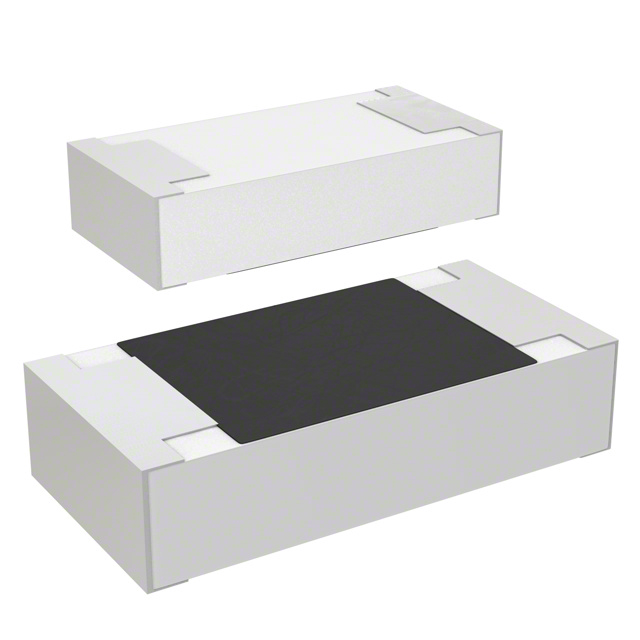

SURFACE MOUNT CHIP RESISTOR, THICK FILM, CRS SERIES, 1 MOHM, 2 W, 1%, 600 V, 2512 [6432 METRIC] ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

CRS2512-FX-1004ELF

Active

Bourns Inc.

SURFACE MOUNT CHIP RESISTOR, THICK FILM, CRS SERIES, 1 MOHM, 2 W, 1%, 600 V, 2512 [6432 METRIC] ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CRS2512-FX-1004ELF

Composition	Thick Film
Features	Pulse Withstanding, High Voltage
Height - Seated (Max) [Max] [z]	0.03 in
Height - Seated (Max) [Max] [z]	0.75 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	6432 Metric
Package / Case	2512
Power (Watts)	2 W
Resistance	1 MOhms
Supplier Device Package	2512
Temperature Coefficient	100 ppm/°C
Tolerance	1 %

CRS2512 Series

Part	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Features	Package / Case	Package / Case	Temperature Coefficient	Composition	Number of Terminations	Supplier Device Package	Power (Watts)
Bourns Inc. CRS2512-FX-5110ELF	1 %	0.03 in	0.75 mm	155 °C	-55 °C	511 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-JX-391ELF	5 %	0.03 in	0.75 mm	155 °C	-55 °C	390 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-FX-1004ELF	1 %	0.03 in	0.75 mm	155 °C	-55 °C	1 MOhms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-FX-1002ELF	1 %	0.03 in	0.75 mm	155 °C	-55 °C	10000 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-FW-3R90ELF	1 %	0.03 in	0.75 mm	155 °C	-55 °C	3.9 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	200 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-FW-1R00ELF	1 %	0.03 in	0.75 mm	155 °C	-55 °C	1 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	200 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-JX-222ELF	5 %	0.03 in	0.75 mm	155 °C	-55 °C	2200 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-JX-360ELF	5 %	0.03 in	0.75 mm	155 °C	-55 °C	36 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-JX-121ELF	5 %	0.03 in	0.75 mm	155 °C	-55 °C	120 Ohms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
Bourns Inc. CRS2512-FX-1332ELF	1 %	0.03 in	0.75 mm	155 °C	-55 °C	13.3 kOhms	High Voltage Pulse Withstanding	6432 Metric	2512	100 ppm/°C	Thick Film	2	2512	2 W
