73603W 0081000

Active

Belden Inc.

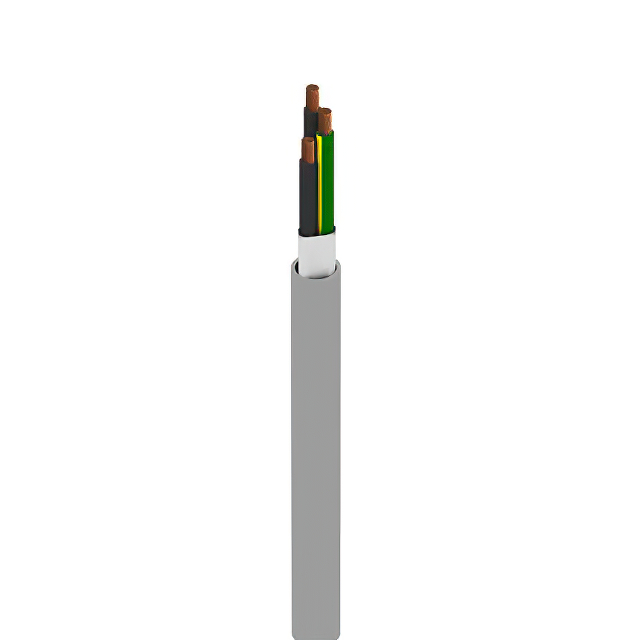

CABLE 3COND 16AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 3COND 16AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	73603W 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	7.62 mm
Jacket (Insulation) Diameter [diameter]	0.3 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Ratings	UL Style 2587
Voltage	600 V
Wire Gauge	16 AWG

Part	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Wire Gauge	Jacket Color	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Voltage	Conductor Material	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket (Insulation) Material
Belden Inc. 73603W 0081000	Oil Resistant	0.889 mm	0.035 in	UL Style 2587	16 AWG	Gray	Multi-Conductor	30 AWG	26	3	600 V	Copper Bare	Poly-Vinyl Chloride (PVC)	7.62 mm	0.3 in	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 16 AWG 1000.0' (304.8m)
