FTSH-102-03-S-D

Active

Samtec Inc.

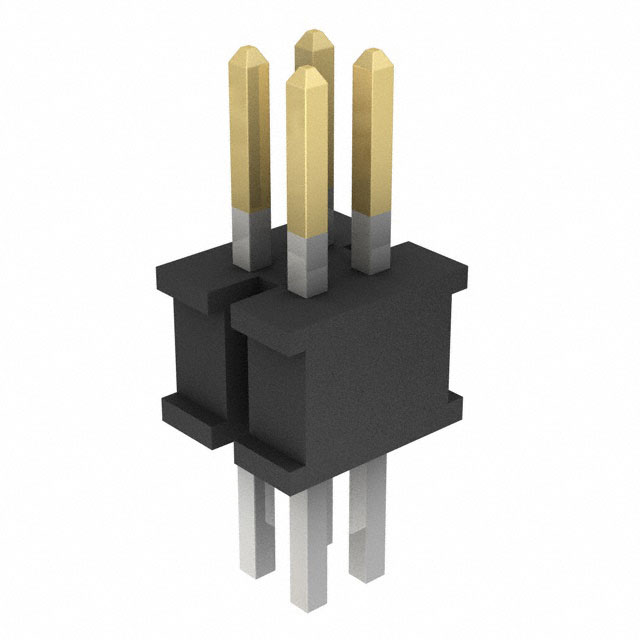

CONN HEADER VERT 4POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

FTSH-102-03-S-D

Active

Samtec Inc.

CONN HEADER VERT 4POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTSH-102-03-S-D

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	0.065 in
Contact Length - Mating	1.65 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.51 mm
Insulation Height	0.099 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	6.48 mm
Overall Contact Length	0.255 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

FTSH-102 Series

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Mating	Contact Type	Number of Rows	Number of Positions Loaded	Insulation Material	Fastening Type	Style	Termination	Contact Length - Mating	Contact Length - Mating	Features	Contact Length - Post	Contact Length - Post	Overall Contact Length	Overall Contact Length
Samtec Inc. FTSH-102-02-L-DH-TR	Surface Mount Right Angle	10 çin	0.25 çm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze	1.9 mm	0.075 in	Black	0.05 in	1.27 mm	Unshrouded	3.43 mm	0.135 "	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder
Samtec Inc. FTSH-102-01-F-DV	Surface Mount	3 µin	0.076 µm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	2.51 mm	0.099 in	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.05 mm	0.12 in
Samtec Inc. FTSH-102-04-L-DH-C	Surface Mount Right Angle	10 çin	0.25 çm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	3.43 mm	0.135 "	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.81 mm	0.15 in	Pick and Place
Samtec Inc. FTSH-102-01-L-MT-TR	Surface Mount Right Angle Through Hole	10 çin	0.25 çm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	3.43 mm	0.135 "	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.05 mm	0.12 in		0.09 "	2.29 mm
Samtec Inc. FTSH-102-01-S-DV-TR	Surface Mount	30 Áin	0.76 Ám	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	2.51 mm	0.099 in	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.05 mm	0.12 in
Samtec Inc. FTSH-102-03-S-D	Through Hole	30 Áin	0.76 Ám	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	2.51 mm	0.099 in	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	1.65 mm	0.065 in		0.09 "	2.29 mm	6.48 mm	0.255 in
Samtec Inc. FTSH-102-01-L-DV	Surface Mount	10 çin	0.25 çm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	2.51 mm	0.099 in	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.05 mm	0.12 in
Samtec Inc. FTSH-102-03-L-DV	Surface Mount	10 çin	0.25 çm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	2.51 mm	0.099 in	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	1.65 mm	0.065 in
Samtec Inc. FTSH-102-01-F-DV-TR	Surface Mount	3 µin	0.076 µm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	2.51 mm	0.099 in	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.05 mm	0.12 in
Samtec Inc. FTSH-102-04-F-DH-TR	Surface Mount Right Angle	3 µin	0.076 µm	0.05 in	1.27 mm	UL94 V-0	Cuttable Header	4	-55 °C	125 °C	Tin	Phosphor Bronze			Black	0.05 in	1.27 mm	Unshrouded	3.43 mm	0.135 "	Square	Gold	Male Pin	2	All	Liquid Crystal Polymer (LCP)	Push-Pull	Board to Board Cable	Solder	3.81 mm	0.15 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.37

Description

General part information

FTSH-102 Series

Connector Header Through Hole 4 position 0.050" (1.27mm)
