PE45470

Active

Pasternack

2.92(F) END LAUNCH MSTRP 0.005"

Search across all available documentation for this part.

Active

Pasternack

2.92(F) END LAUNCH MSTRP 0.005"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PE45470	PE4547 Series

Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.4 - 2.92 mm
Connector Style	-	OS-50
Connector Style	-	APC-2.4
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Features	Mounting Hardware	Mounting Hardware
Frequency - Max [Max]	40 GHz	40 - 50 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Board Edge, End Launch	Board Edge, End Launch
Number of Ports	1	1
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shield Termination	Clamp	Clamp

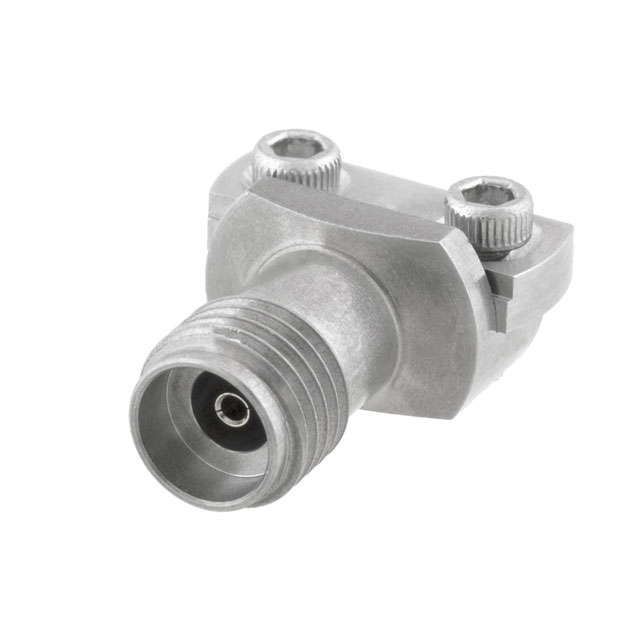

2.92(F) END LAUNCH MSTRP 0.005"

Part	Contact Termination	Features	Connector Style	Impedance	Mating Cycles	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Ports	Housing Color	Shield Termination	Body Material	Center Contact Plating	Center Contact Material	Frequency - Max [Max]	Connector Type	Connector Style	Connector Style
Pasternack PE45470	Solder	Mounting Hardware	2.92 mm	50 Ohms	500	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Board Edge, End Launch	1	Silver	Clamp	Stainless Steel	Gold	Beryllium Copper	40 GHz	Female Socket, Receptacle
Pasternack PE45473	Solder	Mounting Hardware	2.4 mm	50 Ohms	500	Polytetrafluoroethylene (PTFE)	125 °C	-40 °C	Board Edge, End Launch	1	Silver	Clamp	Stainless Steel	Gold	Beryllium Copper	50 GHz	Female Socket, Receptacle	OS-50	APC-2.4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Solder
