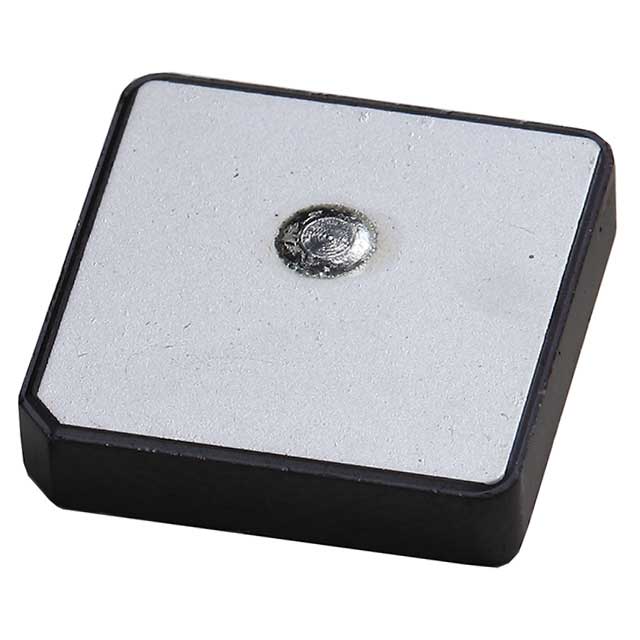

ANT1818B00DT1516S

Active

Pulse Electronics

RF ANT 1.575/1.602GHZ CER PATCH

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 1.575/1.602GHZ CER PATCH

Technical Specifications

Parameters and characteristics commom to parts in this series

RF ANT 1.575/1.602GHZ CER PATCH

Part	Return Loss	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Antenna Type	RF Family/Standard	Frequency (Center/Band)	Applications	Termination	Gain	Mounting Type	VSWR	Frequency Range [Max]	Frequency Range [Min]	Number of Bands	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max]	Height (Max) [Max]
Pulse Electronics ANT1818B00DT1516S	-26.781 dB, -26.08 dB	2 GHz	1 GHz	UHF	Ceramic Patch	Navigation	1.575 GHz, 1.602 GHz	GLONASS, GPS	Pin	2.65 dBi, 2.79 dBi	Adhesive	2	1.606 GHz	1.575 GHz	2	4 mm	0.157 in
Pulse Electronics ANT1818B00FTGNSSS	3 dB	2 GHz	1 GHz	UHF	Ceramic Patch	Navigation	1.5845 GHz	GNSS	Pin	-2 dBi	Adhesive		1.61 GHz	1.559 GHz	1	4 mm	0.157 in
Pulse Electronics ANT1818B00AT1575S	-10 dB	2 GHz	1 GHz	UHF	Ceramic Patch	Navigation	1.6 GHz	GPS	Solder	2 dBic	Surface Mount	2	1.583 GHz	1.577 GHz	1			2 mm	0.079 in
