4-87422-0

Active

TE Connectivity AMP Connectors

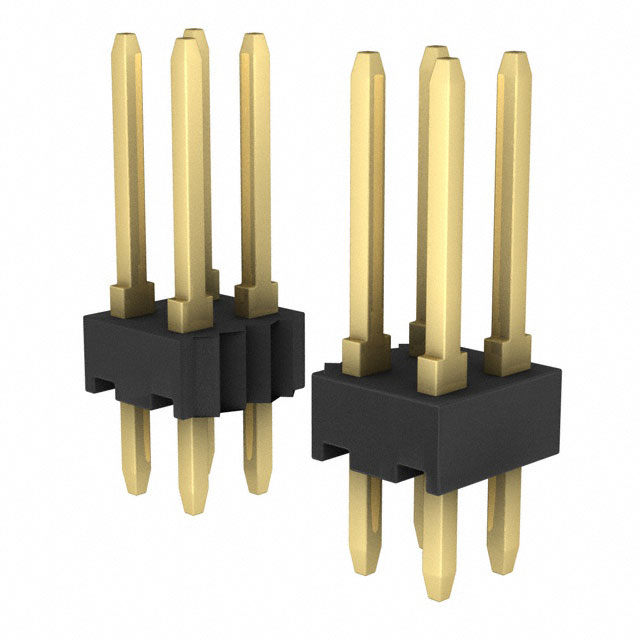

CONN HEADER VERT 80POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 80POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	4-87422-0

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post	13.21 mm
Contact Length - Post	0.52 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.09 in
Insulation Height	2.29 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Through Hole
Number of Positions	80
Number of Positions Loaded	All
Number of Rows	2
Overall Contact Length	0.927 in
Overall Contact Length	23.55 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

CONN HEADER VERT 80POS 2.54MM

Part	Contact Length - Post	Contact Length - Post	Connector Type	Mounting Type	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Contact Material	Insulation Material	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Fastening Type	Shrouding	Insulation Height	Insulation Height	Number of Rows	Termination
TE Connectivity AMP Connectors 4-87422-0	13.21 mm	0.52 "	Header	Through Hole	All	80	30 Áin	0.76 Ám	Board to Board, Cable	0.927 in	23.55 mm	Black	0.318 "	8.08 mm	Male Pin	Phosphor Bronze	Glass Filled, Nylon, Polyamide (PA)	Square	2.54 mm	0.1 in	0.1 in	2.54 mm	Gold	Push-Pull	Unshrouded	0.09 in	2.29 mm	2	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 80 position 0.100" (2.54mm)
