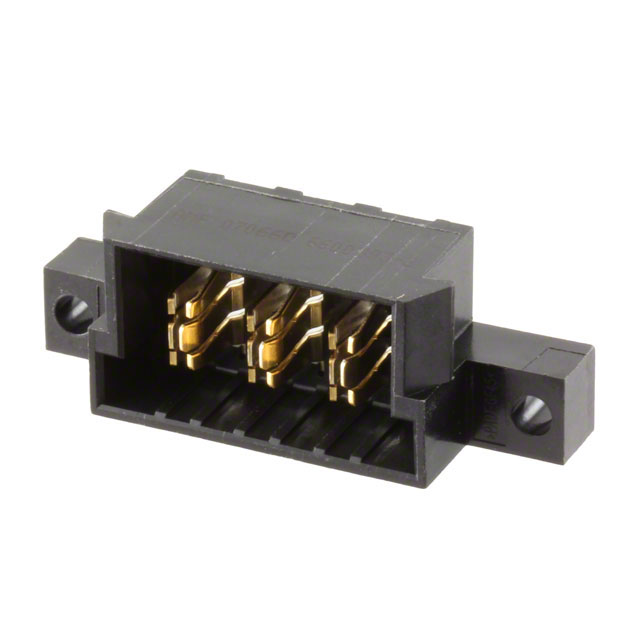

6600393-2
ActiveTE Connectivity AMP Connectors
CONN RCPT MULTI-BEAM 3POS PCB
6600393-2
ActiveTE Connectivity AMP Connectors
CONN RCPT MULTI-BEAM 3POS PCB
Description
General part information
6600393 Series
PCB Mount Header, Vertical, Board-to-Board, 3 Position, 6.35 mm [.25 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Press-Fit, Power, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 6600393-2 |
|---|---|
| Color | Black |
| Connector Style | Multi-Beam |
| Connector Type | Receptacle, Blade Sockets, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Lock |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -20 °C |
| Power Contacts (Typical) | 3 |
| Termination | Press-Fit |
