34141

Active

CONN RING CIRC 16-22AWG #4 CRIMP

Active

CONN RING CIRC 16-22AWG #4 CRIMP

Description

General part information

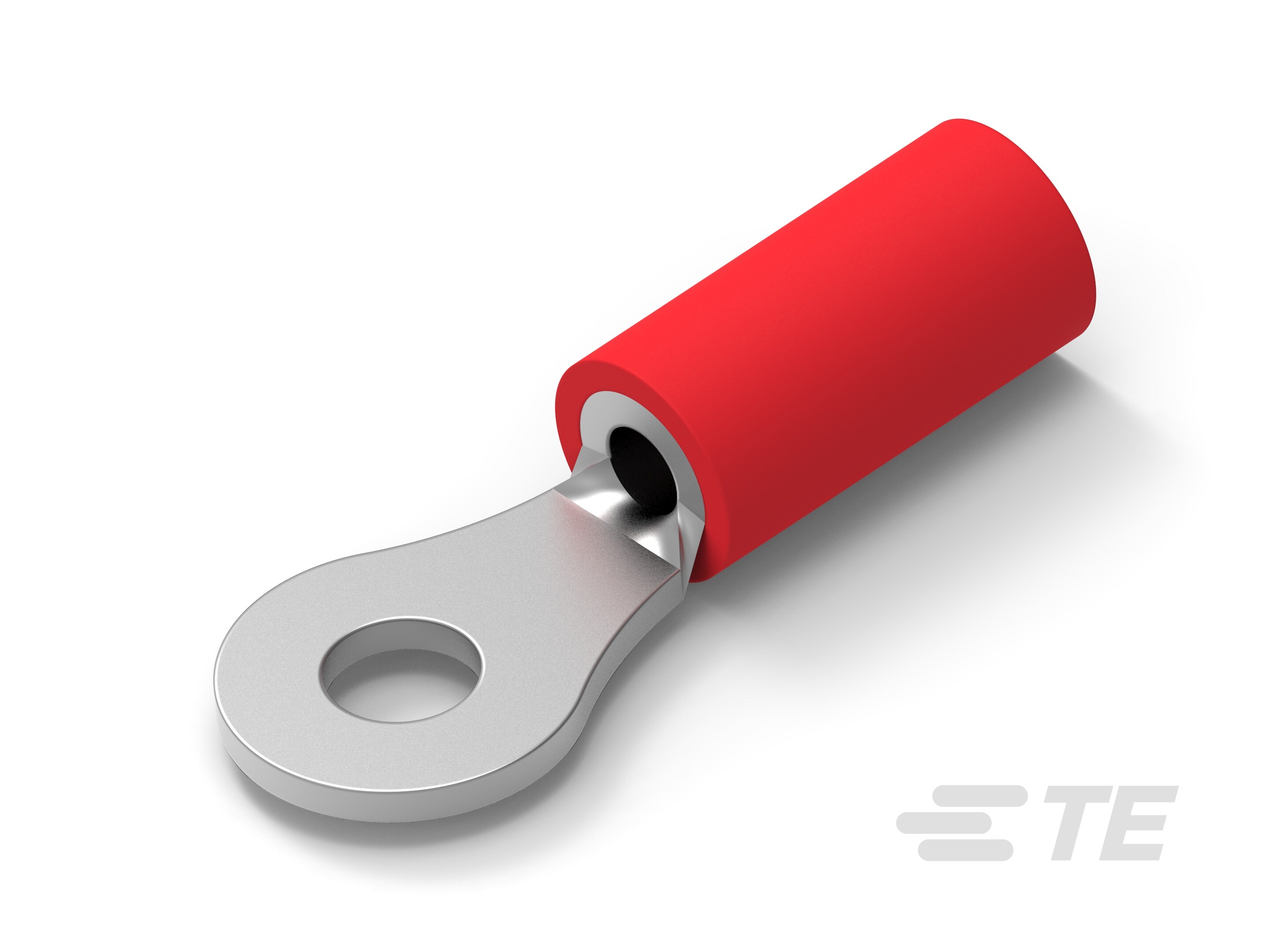

Closed Ring Tongue Terminal, 22 AWG, #4 / M2.5 Stud, 3.02 mm [.119 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP

Parameters and characteristics for this part

Part	Insulation	Length - Overall	Terminal Type	Color	Contact Material	Termination	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Thickness	Width - Outer Edges	Features	Stud/Tab Size	Contact Finish	Mounting Type	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation
TE Connectivity AMP Connectors 34147	Insulated	0.856 in	Circular	Red	Copper	Crimp	16 AWG	22 AWG	0.031 in	0.312 in	Serrated Termination	6 Stud	Tin	Free Hanging (In-Line)	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34141	Insulated	0.684 in	Circular	Red	Copper	Crimp	16 AWG	22 AWG	0.031 in	0.218 in	Serrated Termination	4 Stud	Tin	Free Hanging (In-Line)	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34140	Insulated	0.684 in	Circular	Red	Copper	Crimp	16 AWG	22 AWG	0.031 in	0.218 in	Serrated Termination	2 Stud	Tin	Free Hanging (In-Line)	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34148	Insulated	0.856 in	Circular	Red	Copper	Crimp	16 AWG	22 AWG	0.031 in	0.312 in	Serrated Termination	8 Stud	Tin	Free Hanging (In-Line)	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
TE Connectivity AMP Connectors 34143	Insulated	0.809 in	Circular	Red	Copper	Crimp	16 AWG	22 AWG	0.031 in	0.281 in	Serrated Termination	4 Stud	Tin	Free Hanging (In-Line)	0.105 in	0.14 in	Poly-Vinyl Chloride PVC
