VSC8221XHH
Active1 PORT GBE CU PHY WITH SGMII FOR CUSFP APPS
Deep-Dive with AI
Search across all available documentation for this part.
VSC8221XHH
Active1 PORT GBE CU PHY WITH SGMII FOR CUSFP APPS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSC8221XHH |
|---|---|
| Mounting Type | Surface Mount |
| Protocol | Gigabit Ethernet |

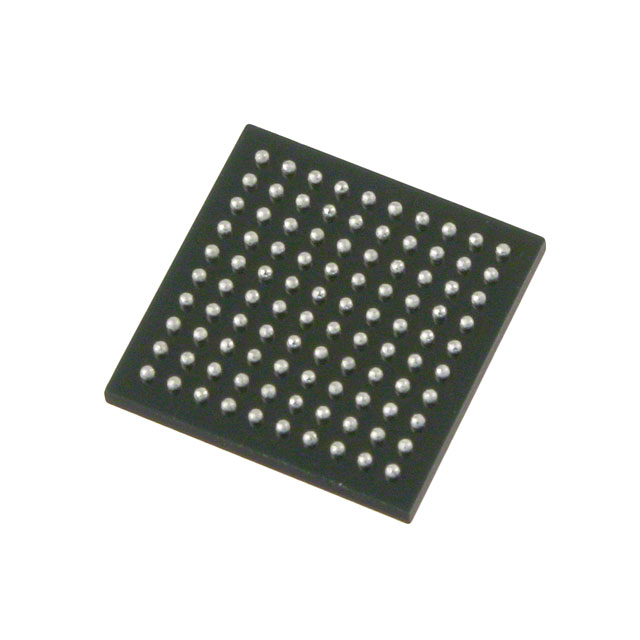

| Supplier Device Package | 100-TFBGA (9x9) |
| Type | Transceiver |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 17.35 | |
| 25 | $ 14.44 | |||
| 100 | $ 13.96 | |||
| Microchip Direct | TRAY | 1 | $ 17.35 | |
| 25 | $ 14.44 | |||
| 100 | $ 13.13 | |||
| 1000 | $ 12.13 | |||
| 5000 | $ 11.51 | |||
VSC8221 Series
1 Port GbE Cu PHY with SGMII for CuSFP Apps
| Part | Mounting Type | Protocol | Supplier Device Package | Type | Voltage - Supply [Max] | Voltage - Supply [Min] |
|---|---|---|---|---|---|---|
Microchip Technology VSC8221XHH | Surface Mount | Gigabit Ethernet | 100-TFBGA (9x9) | Transceiver | 3.6 V | 3 V |
Description
General part information
VSC8221 Series
The VSC8221 is the smallest, lowest power Gigabit Ethernet (GE) over copper PHY available and is ideal for SFP/GBIC and Media Converter applications. It is the only triple speed copper SFP PHY to meet the stringent MSA power consumption requirement of 140m of Category 5, unshielded twisted pair (UTP) cable, with industry leading tolerance to NEXT, FEXT, Echo, and system noise.
Microchip's complimentary and confidential [MicroCHECK](https://www.microchip.com/en-us/support/design-help/design-check-services) design review service, which offers insight from the initial concept to the final PCB layout, is available to customers who are using our products in their projects. You can confidently submit your design materials in a secure and private setting, and our expert engineers will provide individualized feedback to enhance your design. MicroCHECK design review service is subject to Microchip's [Program Terms and Conditions](https://www.microchip.com/en-us/support/design-help/design-check-services/design-check-services-program-terms-and-conditions) and requires a myMicrochip account.
