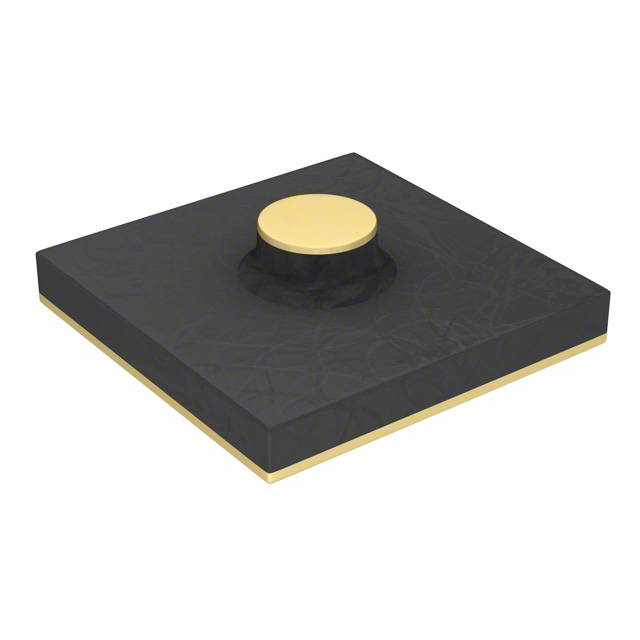

CLA4610-000
ActiveSkyworks Solutions Inc.
RF DIODE PIN 120V 620MW DIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLA4610-000
ActiveSkyworks Solutions Inc.
RF DIODE PIN 120V 620MW DIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLA4610-000 |
|---|---|
| Capacitance @ Vr, F | 0.12 pF |
| Current - Max [Max] | 200 mA |
| Diode Type | PIN - Single |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -65 °C |
| Package / Case | Die |
| Power Dissipation (Max) [Max] | 620 mW |
| Resistance @ If, F | 2.2 Ohm |
| Supplier Device Package | Die |
| Voltage - Peak Reverse (Max) [Max] | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 100 | $ 2.69 | |
| 300 | $ 2.55 | |||
| 500 | $ 2.29 | |||
| 1000 | $ 1.93 | |||
| 2500 | $ 1.83 | |||
| 5000 | $ 1.77 | |||
Description
General part information
CLA4610 Series
RF Diode PIN - Single 120V 200 mA 620 mW Die
