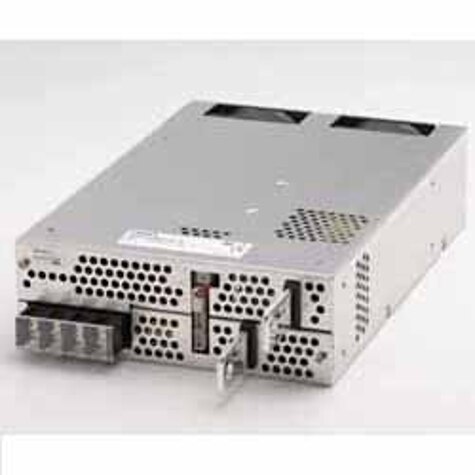

Specification	PBA1500F-7R5

Applications	ITE (Commercial)
Approval Agency	cURus, TUV, CE
Current - Output 1	200 A
Efficiency	83 %
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Size / Dimension Height	2.4 in
Size / Dimension Length	10.55 in
Size / Dimension Width	7.01 in
Type	Enclosed
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	7.5 V

PBA Series

...

Part	Minimum Load Required	Mounting Type	Number of Outputs	Voltage - Isolation	Approval Agency	Type	Voltage - Output 2	Current - Output 2	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Voltage - Output 1	Efficiency	Applications	Current - Output 1	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Features	Power (Watts)
Cosel USA, Inc. PBW15F-15-E	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-15 V	1 A	3.35 in	3.07 in	1.22 in	15 V	80 %	ITE (Commercial)	500 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-15-C	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-15 V	1 A	3.35 in	3.07 in	1.22 in	15 V	80 %	ITE (Commercial)	500 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-15-G	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-15 V	1 A	3.35 in	3.07 in	1.22 in	15 V	80 %	ITE (Commercial)	500 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-15-T	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-15 V	1 A	3.35 in	3.07 in	1.22 in	15 V	80 %	ITE (Commercial)	500 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-15	No	Chassis Mount	2		CE cURus TUV	Open Frame	-15 V	1 A				15 V	80 %	ITE (Commercial)	500 mA			85 VAC	264 V	DC Input Capable Universal Input	15 W
Cosel USA, Inc. PBW15F-15-N1	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-15 V	1 A	3.35 in	3.07 in	1.22 in	15 V	80 %	ITE (Commercial)	500 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-12-C	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-12 V	1.4 A	3.35 in	3.07 in	1.22 in	12 V	77 %	ITE (Commercial)	700 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-12-N1	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-12 V	1.4 A	3.35 in	3.07 in	1.22 in	12 V	77 %	ITE (Commercial)	700 mA	-10 °C	71 °C	85 VAC	264 V
Cosel USA, Inc. PBW15F-15-N	No	Chassis Mount	2		CE cURus TUV	Open Frame	-15 V	1 A				15 V	80 %	ITE (Commercial)	500 mA			85 VAC	264 V	DC Input Capable Universal Input	15 W
Cosel USA, Inc. PBW15F-15-CN1	No	Chassis Mount	2	3 kV	CE cURus TUV	Open Frame	-15 V	1 A	3.35 in	3.07 in	1.22 in	15 V	80 %	ITE (Commercial)	500 mA	-10 °C	71 °C	85 VAC	264 V
