CONN PC PIN CIRC 0.040DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3103-2-00-21-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.040DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3103-2-00-21-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.77 mm |
| Flange Diameter [diameter] | 0.07 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 7.62 mm |
| Length - Above Flange [x] | 0.3 " |
| Length - Below Flange [x] | 0.082 in |
| Length - Below Flange [x] | 2.08 mm |
| Length - Overall [x] | 0.402 in |
| Length - Overall [x] | 10.2 mm |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
3103-2 Series
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Mounting Type | Contact Finish | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Termination | Board Thickness | Board Thickness | Insulation | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | Brass Alloy | Single End | 7.62 mm | 0.3 " | Through Hole | Gold | 1.02 mm | 0.04 in | PC Pin | 1.09 mm | 0.043 in | 0.082 in | 2.08 mm | 0.51 µm | 20 µin | Swage | 0.062 in | 1.57 mm | Non-Insulated | 0.402 in | 10.2 mm |
Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | Brass Alloy | Single End | 7.62 mm | 0.3 " | Through Hole | Tin-Lead | 1.02 mm | 0.04 in | PC Pin | 1.09 mm | 0.043 in | 0.082 in | 2.08 mm | 5.08 Ám | 200 Áin | Swage | 0.062 in | 1.57 mm | Non-Insulated | 0.402 in | 10.2 mm |
Mill-Max Manufacturing Corp. | 1.77 mm | 0.07 in | Brass Alloy | Single End | 7.62 mm | 0.3 " | Through Hole | Gold | 1.02 mm | 0.04 in | PC Pin | 1.09 mm | 0.043 in | 0.082 in | 2.08 mm | 0.25 Ám | 10 Áin | Swage | 0.062 in | 1.57 mm | Non-Insulated | 0.402 in | 10.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.48 | |
| 10 | $ 0.36 | |||
| 25 | $ 0.33 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.25 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
Description
General part information
3103-2 Series

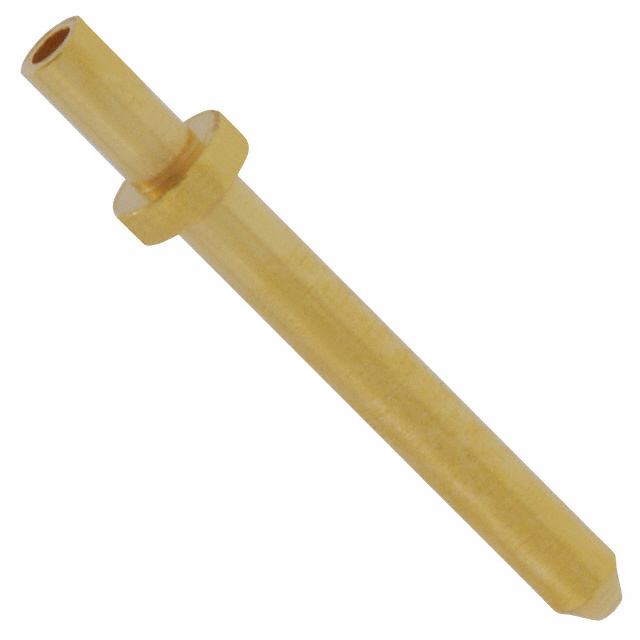

PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
Documents
Technical documentation and resources
No documents available
